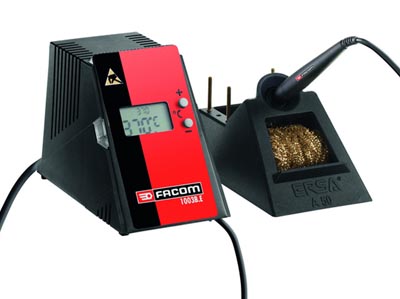

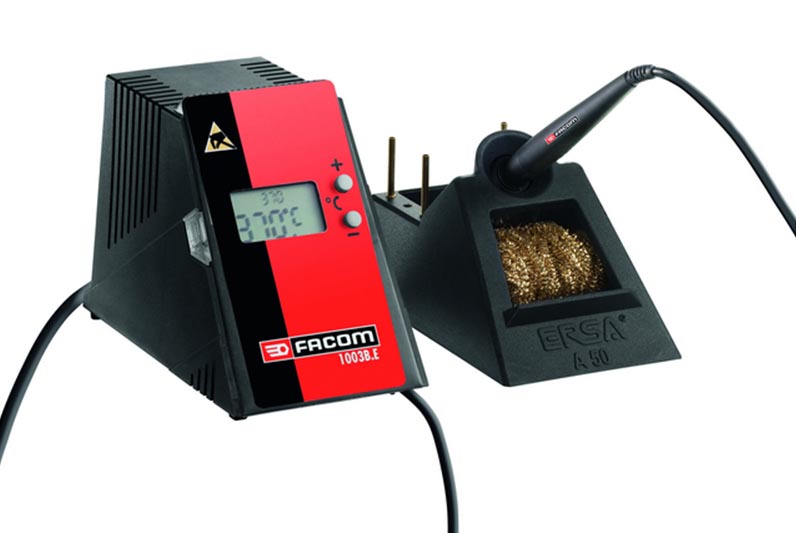

Facom AntiStatic Soldering Station-68w (1003B.E) - introduced in 2013. Made in Germany. Multivoltage allows use with 110-120v (50/60hz) or 220-240v (50/60hz). The previous 1003A.E only had a 230v power supply.
- Ultra fast heating time: 9 s.
- Automatic standby mode for less power consumption and automatic power off.
- Super compact station.
- Temperature calibration possible for higher accuracy. Reduction of temperature of the display and that of the soldering iron tip.
- Setpoint temperature: 360 °C / 680 °F.
- Temperature range: 150 to 450°C, 300 to 842°F.
- Stability: + or – 2°c.
- Power: 68 W.
- Supply voltage: 220 - 240 V ~ 50/60 Hz 110 - 120 V ~ 50/60 Hz.
- Dimensions (L x H x D): 145 mm x 80 mm x 103 mm.
- Weight: 1050 g.
Uses soldering iron 1003B.68E (included)....
- Voltage: 16,5 V~
- Output: 68W / 350°C
- Dimensions: 175 mm x 12 mm
- Weight (without cable): 30 g
- Cable: 1 m ultra-fl exible, heat-resistant, antistatic
- Design: antistatic according to MIL-SPEC/ standard
- Holder Dimensions: 140 mm x 80 mm x 80 mm / Weight: 0,2 kg
Spare iron tips 1003B.68E:
- 1003B.P1: thin pen tip (0.4mm).
- 1003B.P2: large pen tip (1.0mm).
- 1003B.P3: screwdriver tip (1.6mm).
Note that Facom has discontinued this product in 2025. I have 1 left in stock. No more will be available.
