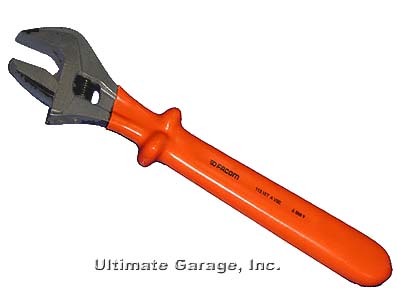

Facom 1000v Insulated Adjustable Wrench-8" (113.8TAVSE)......
- 27mm capacity (8 1/4" overall length)
- Finger Stops
- 2-color warning system (orange = good, yellow = replace)
- Graduated head with a 15 degree angle
- Thumbwheel rotates counter-clockwise
- Burnished finish.
The Facom 113.8TAVSE (also cataloged as FA-113.8TAVSE) is a premium 8-inch (210 mm) 1,000V Insulated Adjustable Wrench. It is the most compact entry in Facom's specialized AVSE electrical safety lineup, optimized for electrical engineers, field technicians, and industrial contractors maintaining compact switchboards, control panels, or automotive battery systems.
⚙️ Technical Specifications
- Overall Length: 210 mm / 8.46 inches
- Maximum Jaw Capacity: 27 mm / 1¹⁄₁₆ inches
- Total Weight: 375 grams / 0.83 lbs
- Voltage Insulation: Safety-certified for live-line work up to 1,000 Volts AC or 1,500 Volts DC.
- Safety Certifications: Fully certified to international standards including IEC 60900, EN 60900, NF ISO 6787, and ASME B107.100.
????️ Core Safety & Construction Features
- Molded Finger Stops: Prominent molded guards are integrated into the insulated sleeve profile to stop a user's hand from accidentally slipping forward onto the conductive, uninsulated metal head.
- Dual-Color Safety Indicator: Engineered with a multi-layer warning sheathing (orange over yellow). If the outer orange coat suffers a deep cut, wear, or puncture that exposes the underlying yellow core, insulation integrity is lost and the tool must be retired from live-service.
- Anti-Arcing Burnished Profile: Built with an anti-glare, black phosphate burnished steel body to minimize arc flash damage risks if an accidental short occurs.
- Graduated 15° Head: Features a high-visibility, laser-etched metric scale on the 15° angled jaw head for accurate pre-adjustment before matching a nut.
