Facom 2-Way Chain Wrench (136C.4) -
- Capacity :90 -140 mm.
- Hardened steel chain and body.
- Twin set of serrations grip in both directions.
- Replaces 136B.4 (discontinued in 2017).

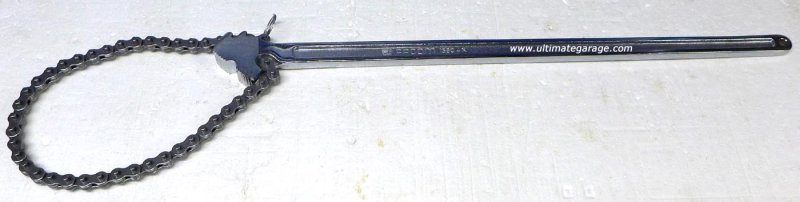

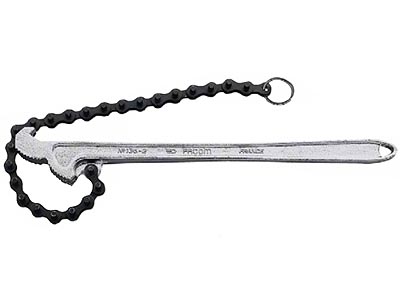

The Facom 136C.4 is a professional-grade, heavy-duty reversible double-action chain wrench designed for gripping, tightening, and loosening large cylindrical workpieces. It is highly utilized by industrial plumbers, automotive technicians, and maintenance engineers to tackle stubborn pipes, large fittings, and heavy vehicle oil filters.

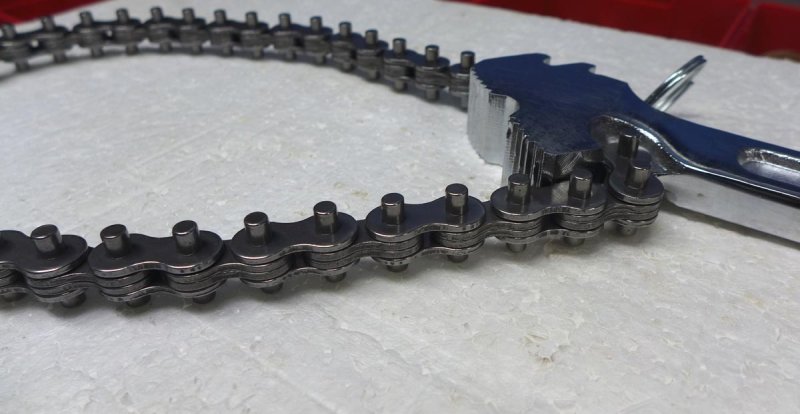

- Double-Action Reversibility: Equipped with a specialized twin set of serrated teeth on the jaw head. This allows users to alternate between tightening and loosening configurations in either direction without ever removing the wrench or unhooking the chain, saving vital swing clearance in tight industrial spaces.
- High Torque Resilience: Both the structural body handle and the integrated chain are forged from hardened alloy steel, built to absorb intense mechanical force without slipping, deforming, or fracturing under load.
- Model Equivalency: This serves as the direct upgraded catalog successor to the older Facom 136B.4 design profile.
Technical Specifications
- Clamping Capacity Range: Handles diameters from 90 mm to 140 mm (approx. 3.5 to 5.5 inches). (Note: Certain auxiliary locking positions allow engagement down to a minimum of 60 mm).
- Overall Tool Length (L): 600 mm (approx. 24 inches) providing considerable manual leverage.
- Product Weight: Approximately 1.81 kg to 3.1 kg depending on the specific heavy-duty jaw plate configuration deployed.
- EAN-13 Barcode: 3662424040047.
- Replacement Chain Component: If the chain undergoes severe site fatigue, it can be independently serviced using the part number 136.D4.
