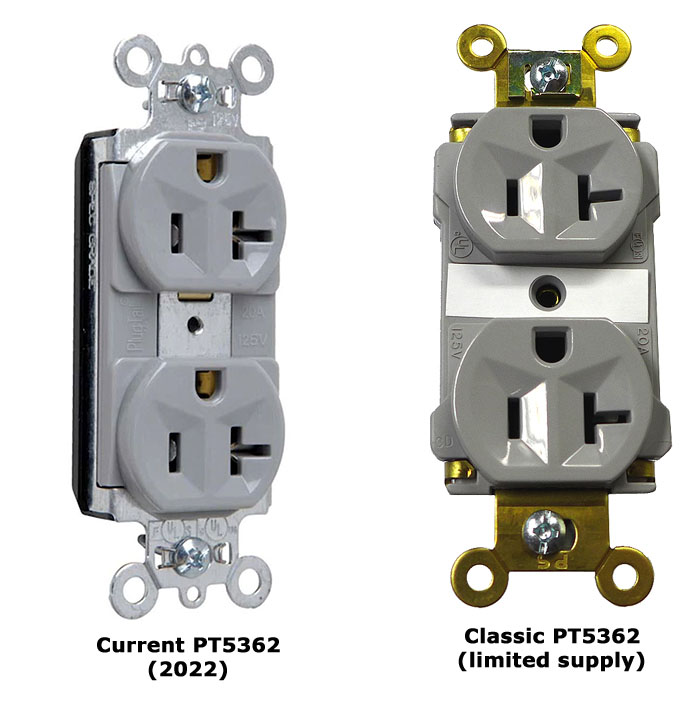

Pass & Seymour 20a Industrial Extra Heavy-Duty duplex receptacle with plug-tail connection (PT5362-AGRY) - these are new (old stock) early production Pass & Seymour receptacles which were highly recommended on the audiophile forums back in the day. I put "Audio Grade" in the name and the outlets sell for $50+ each (P&S calls them "Industrial Grade"). These have brass supporting back straps (not the steel ones you see today). Audiophiles claim that the "steel" straps can make their systems sound "grainy". The unplated brass delivers a warmer, more natural mid-range with high end equipment. Put 1 or 2 of these on a dedicated 20amp circuit for your system or home theatre and you're good to go. They also appear "beefier" than current production.
I purchased hundreds of these back in the day for high end garage projects and for use in my own home. We ran everything except for lighting in 12 gauge and used 20amp receptacles throughout the shop. There are still a few left in stock. Hospital grade performance. Quick connection with no side terminal exposure. Includes 6" Plug-tail with right angle connector. Made in USA.
Note - if you have small children or your inspector requires tamper resistant outlets, these are not "TR".

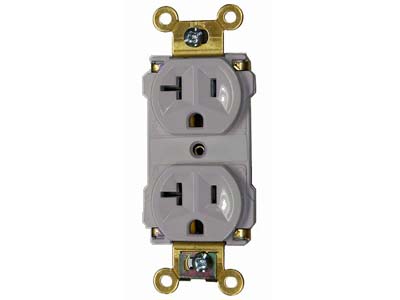

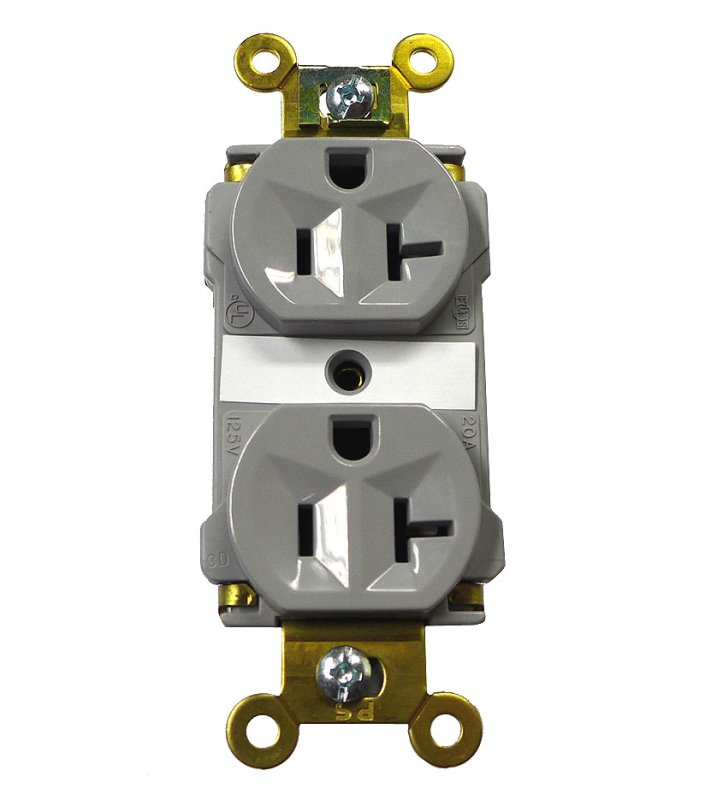

The P&S PT5362-AGRY is a Legrand Pass & Seymour 20 Amp, 125 Volt Industrial Extra Heavy-Duty Specification Grade PlugTail Duplex Receptacle in Gray. This outlet features P&S’s proprietary PlugTail® installation system, utilizing a modular, keyed, finger-safe wiring connector instead of traditional side-terminal binding screws. This design speeds up rough-in and guarantees consistent electrical connections regardless of the installer's skill level.
- Electrical Ratings: 20 Amp continuous current • 125 VAC operational voltage • NEMA 5-20R configuration • 2-Pole, 3-Wire layout.
- Industrial Build Material: Fabricated with a premium nylon face and a high-strength thermoplastic/polycarbonate back body. It features a heavy-duty, one-piece wrapped brass mounting strap with an auto-grounding clip to ensure a reliable path to ground.
- Heavy-Duty Power Contacts: Equipped with
.036-inch thick premium triple-wipe brass power contacts designed to lock down securely on plugs and maintain reliable blade retention over years of heavy use.
- Visual Identifiers: Features an integrated circuit identification label field stamped cleanly on the receptacle face to facilitate permanent circuit mapping.

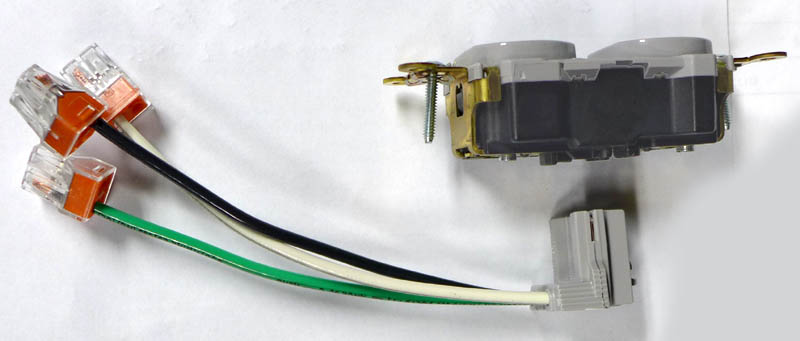

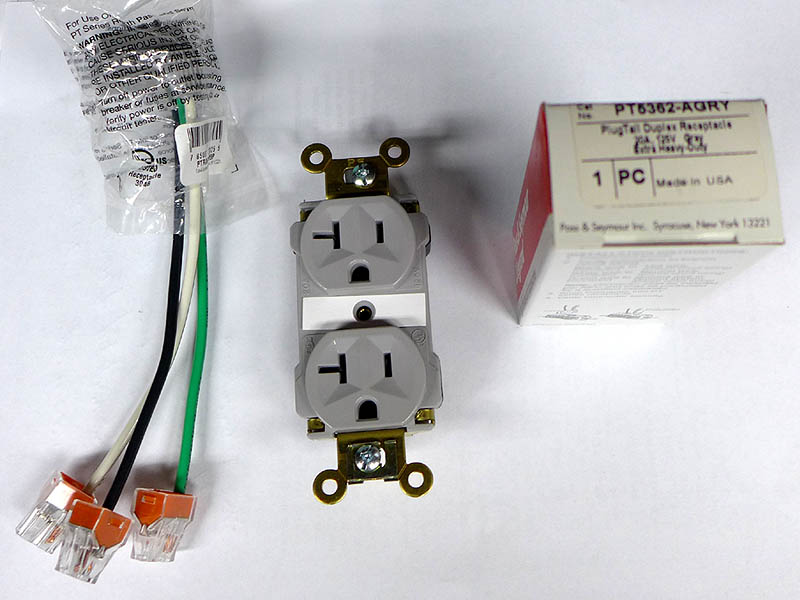

The receptacle body and modular mating PlugTail connector (PTWC series) pig-tail wire harness are typically sold separately. I am including them both with the purchase of each unit.
