(221.12x175) -Split Die-ISO Metric RH Thread (M12x175) (1 available at this price)

0.17 Lbs
 In stock
$113.50 $44.95

Description:

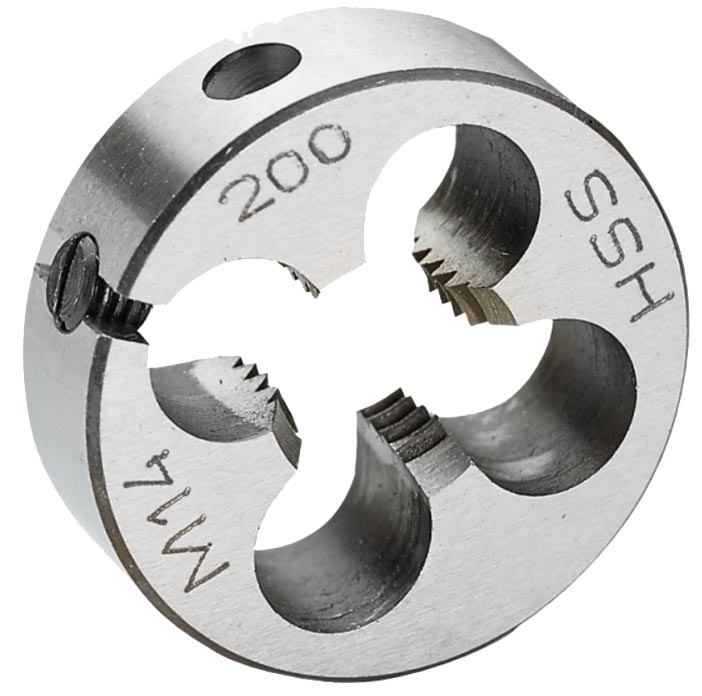

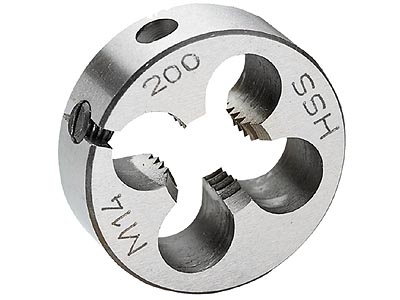

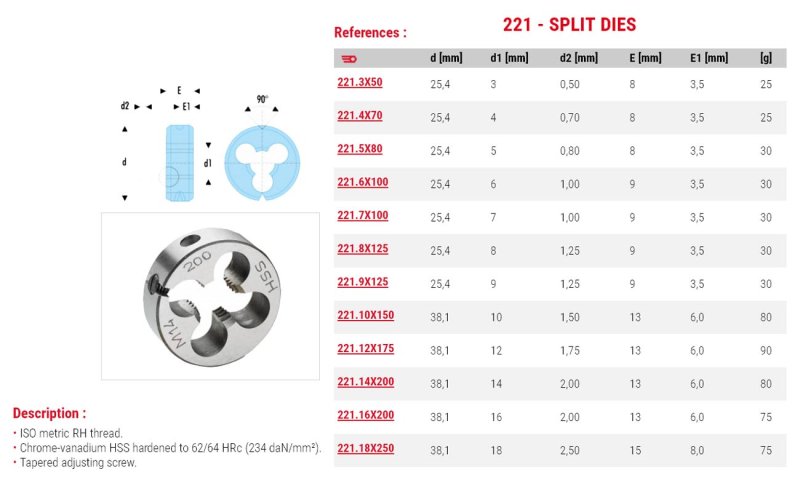

Facom 221 Series ISO Metric RH Thread Split Die - M12x175 - chrome-vanadium HSS hardened to 62/64 HRc. Tapered adjusting screw.



The FACOM 221.12X175 is an M12 x 1.75 metric HSS split die thread cutter engineered for precision external right-hand threading. Forged from alloyed high-speed chrome-vanadium steel and hardened to 62/64 HRc, this industrial-grade tool features an integrated tapered adjusting screw to control thread depth and clear away chips efficiently.

  • Thread Size: M12 • Thread Pitch: 1.75 mm
  • Outside Diameter (OD): 38.1 mm
  • Thickness: 13.0 mm
  • Thread Direction: ISO Metric Right-Hand (RH)
  • Standards Conformity: NF ISO 261 • ISO 261 • DIN ISO 261
  • Weight: 90.0 g
