Facom Steel Scriber with Interchangeable Tips (234A.S) - heat treated steel tips. Tip diameter - 4mm. Body diameter - 8mm. Overall length - 260mm. Weight = 58 gr. Replaces 234.S . Included with MOD.601 and MODM.603.
The Facom 234A.S is a premium, professional-grade double-ended steel scriber featuring interchangeable tips. It is used by mechanics, machinists, and fabricators for clear, high-precision layout marking on metals and other hard raw materials.
- Interchangeable Design: Unlike fixed-point scribers, the 234A.S allows its points to be independently unthreaded and replaced if they become blunt or damaged from heavy shop use.

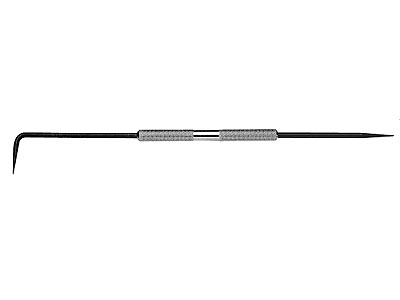

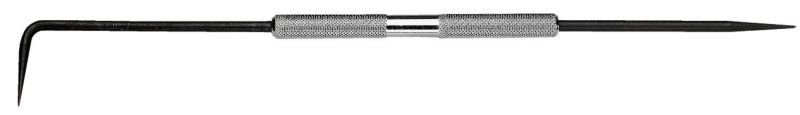

- Double-Ended Scribing: Features one straight fine-point tracing tip and one angled fine-point tip, making it highly versatile for standard marking as well as reaching inside flanges, bores, and tight gaps.
- Knurled Grip Handle: Designed with a cross-hatched, knurled surface treatment along the center steel body to guarantee a secure, non-slip manual finger grip even when handled with greasy or oily work gloves.
- Modular Placement: This tool is standard factory equipment pre-packed into Facom’s MOD.601 (thermoformed plastic) and MODM.603 (foam) modular measuring/marking tool drawer sets.
- Catalog Suffix Distinction: The 234A.S updates and replaces the legacy 234.S variant. It shouldn't be confused with the standard 234A, which is a shorter 190mm fixed-tip marking tool.
Technical Specifications
- Overall Length: 260 mm (approx. 10.2 inches).
- Body Diameter: Ø 8 mm.
- Tip Diameter: Ø 4 mm.
- Material Composition: Forged alloy steel body paired with heat-treated high-speed steel (HSS) tips for maximum sharpness retention.
- Tool Weight: 58 grams (0.11 lbs).
- EAN Barcode: 3662424078606.
- Official Spare Parts: If the tips dull over time, a set of 2 replacement steel tips can be ordered using part number 234.SP2
