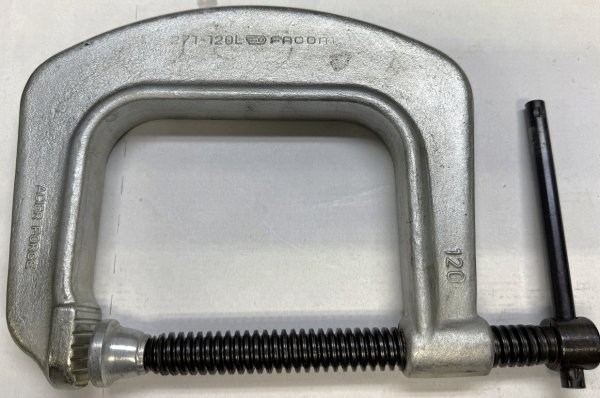

Vintage Facom "Deep throat" G-clamp - Capacity of 0-120mm for bulky assemblies. Forged/hardened and zinc-plated frame. Ribbed zinc-plated swivel face. Burnished screw and handle/ Square thread. Made in France. Weight = 2,660gr. Current production (271A series) are made in China but Facom no longer offers the "120" or "120A" sizes.
The FACOM 271.120L is a vintage, French-manufactured deep-throat compact G-clamp (or assembly press) featuring a 120 mm clamping capacity. Engineered for precision holding, inspection, and light assembly in tightly confined spaces, its deep-throat profile gives it the specialized clearance needed to clamp over flanges or reach around bulky obstructions where standard C-clamps cannot fit.
Key Technical Specifications
- Clamping Capacity: 0 mm to 120 mm
- Total Tool Length (L): 223 mm
- Body Construction: Forged steel frame with a galvanized protective presentation.
- Drive Mechanism: Smooth-turning, burnished steel pressure screw combined with an integrated slide-bar handle.
- Jaw Layout: Flat, fixed jaw pad designed to minimize marring on machined components while providing rigid stability.
- Global Product Codes: EAN
3148511626818 / ERP 10041817209.
Design Variations within the 271A Series - FACOM produced the 271A compact G-clamp family in three distinct industrial capacities, depending on the scale of your assembly work:
| Model Reference |
Clamping Capacity |
Overall Length (L) |
Weight |
| 271A.100 |
0 to 100 mm |
192 mm |
~0.76 kg |
| 271A.120 / 120L |
0 to 120 mm |
223 mm |
~1.68 kg |
| 271A.250 |
0 to 250 mm |
380 mm |
~3.95 kg |
