USAG 285C Series Short Combination Wrench-10mm .... identical to the Facom 39 series.
- Short shank and compact heads

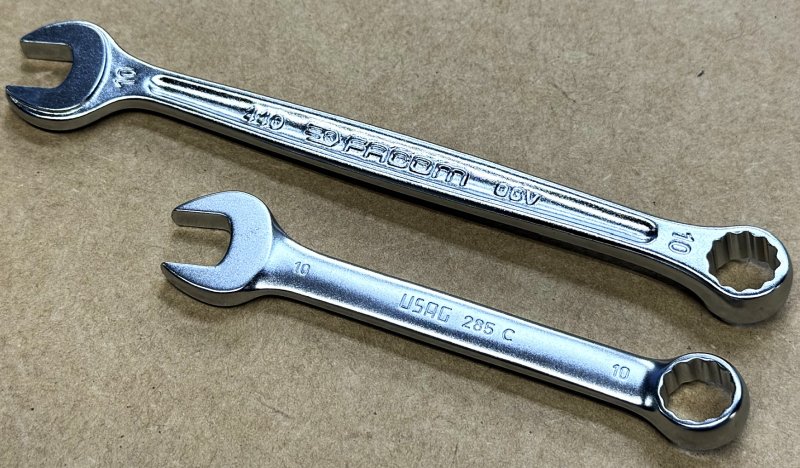

- Ideal where access is restricted (see comp photo vs standard 440 series wrench)
- Angled ring at 15 degrees
- Length = 103mm (approx 4")
- US warranty

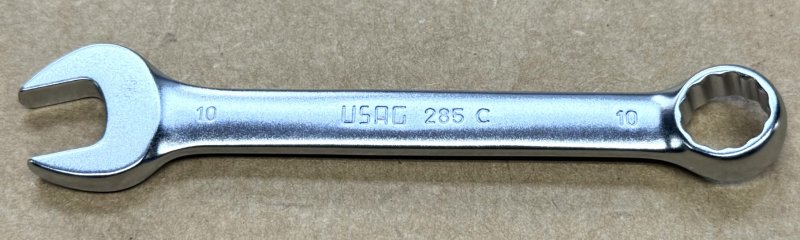

The USAG U02850609 (Model 285 C) is a professional-grade 10 mm stubby (short) metric combination wrench. Manufactured under the Stanley Black & Decker industrial family, this compact spanner is engineered for tight automotive and mechanical spaces where a standard-length combination wrench cannot swing or clear surrounding obstructions.
Key Technical Specifications
- Wrench Size: 10 mm (Both open-end and box-end)
- Total Tool Length: 103 mm (~4.05 inches)
- Profile Geometry: Both the open-end jaw and the ring head are angled at a 15° offset to provide better knuckle clearance and maximum agility in close quarters.
- Ring Profile: 12-point (bi-hex) polygonal mouth to allow easy fastener engagement at double the frequency of a standard 6-point design.
- Material/Finish: Forged from high-grade Chrome Vanadium steel with a durable satin chrome finish.
- Standard Compliance: Fully certified to ISO 7738 standards.
Facom Cross-Reference - Within the global catalog sharing system of Stanley Black & Decker, this short combination wrench corresponds directly to the Facom 39.10 extra-short metric series layout, maintaining matching tolerances and architectural ergonomics.
