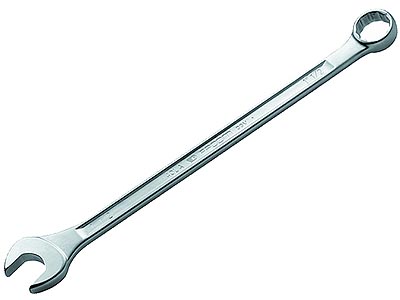

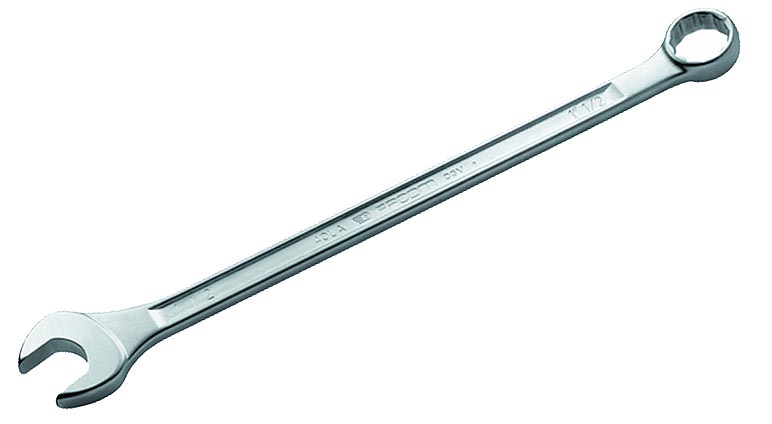

Facom High Torque Combination Wrench - current production "LA" series. See photo for weights and dimensions. Long shank for extra torque. 12 point ring angled at 15 degrees. This and all of the long "fractional" sizes were discontinued by Facom...I still have a few left in stock.
The FACOM 40.1P1/4LA (frequently designated in parts catalogs as 40.1'1/4LA) is a professional-grade, fractional 1-1/4" extra-long high-torque combination wrench. As part of FACOM's industrial high-torque lineup, this wrench is specifically engineered with an extended shank to provide maximum mechanical leverage when breaking loose heavy-duty, seized, or stubborn fasteners.
Key Technical Specifications
- Fastener Size: 1-1/4 inches (Fractional Imperial / SAE)
- Total Tool Length: 472 mm (~18.58 inches)
- Box-End Profile: 12-point (bi-hex) ring featuring FACOM’s high-performance OGV® profile [440.1P1/4]. This profile drives from the flat sides of the hex head rather than pushing on the apexes, protecting massive fasteners from rounding off under extreme loads [40.1P1/16L, 40r.9].
- Head Offset Geometry: The ring head is angled at a 15° offset to ensure structural finger and knuckle clearance over flat workpieces or machinery housings [40.1P1/16L].
- Material & Finish: Forged from high-grade alloy steel and treated with a premium, anti-slip satin chrome finish for optimal shop grip and corrosion resistance [22.JE6T, 40r.14].
- Standard Compliance: Fully certified under ASME B107.100 standards.
