Facom 514A Series Long Reach C-Clamp Lockgrip Pliers (240mm) - For arc-welding metal profiles and small fittings. Special forged-steel jaws for secure clamping of angle sections and deep channels. 4 models available with lengths from 175mm.
- Pressed-steel body.
- "R" models have hinged shoes at their tips.
- Hand-screw adjustment.
- Chrome finish

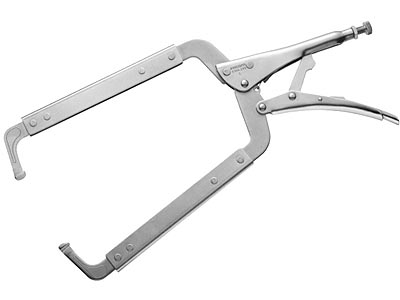

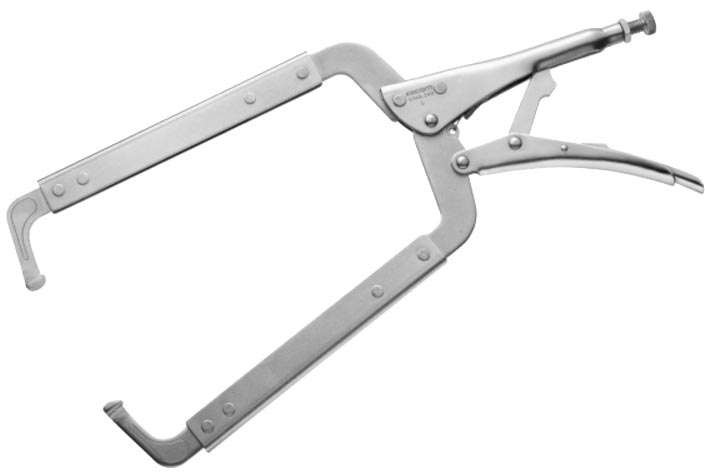

The FACOM 514A.240 is a mid-to-large capacity model within FACOM's professional long-reach C-clamp locking pliers lineup. It is heavily utilized in arc welding and structural fabrication to clamp deeply over massive iron channels, U-profiles, and thick angle sections.

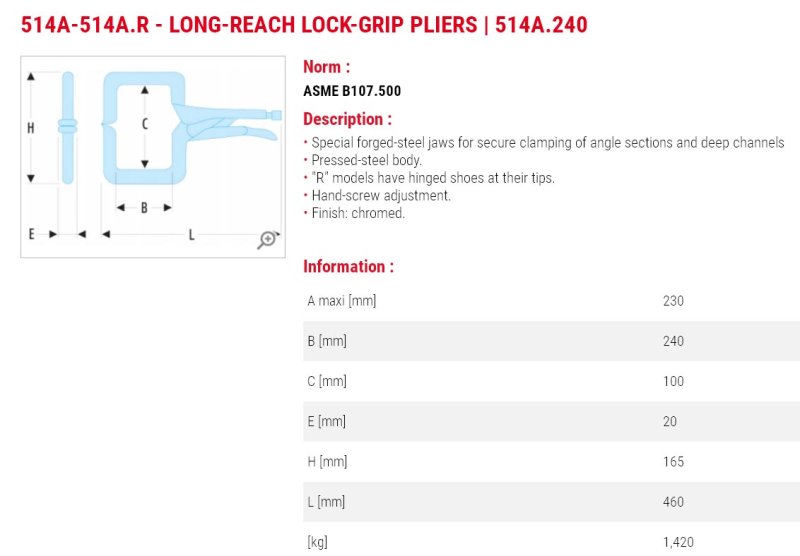

- Max Jaw Capacity / Span: 230 mm
- Overall Length: 460 mm
- Reach Depth: 240 mm (allows the tool to clamp 24cm deep into a profile)
- Weight: ~1.40 kg to 1.53 kg
- Body Material: Formed sheet / pressed steel body with special heavy-duty forged-steel jaws.
- Finish & Standard: Classic chrome plating for corrosion and weld-spatter resistance; fully conforms to technical standard ASME B107.500.
Solid Jaws vs. Swivel Pads (R Version)
- 514A.240 (Standard): Features fixed, solid forged-steel jaw tips. It applies rigid clamping and continuous friction directly onto all-metal corners, flat plates, and square channels.
- 514A.240R (Swivel Variant): Features integrated hinged swivel shoes (patins orientables) at the tips. This variant self-adjusts to clamp tapered, irregular, or slightly angled surfaces evenly without slipping or marring the material
