Facom Dual-position hydraulic driver and ISO size hole punch set (658689) - Hole punch set comprising :
- 1 dual-position hydraulic driver.
- 3 drive shafts 6 - 9.5 and 19 mm.
- 2 spacers : no. 1 and no. 2.
- 1 storage case.
- 1 drill bit d 11 mm.
- Set of 8 ISO diameter hole punches from M12 to M50 : M 12, 16, 20, 25, 32, 40, 50, 63mm.
- 1 jar of lubricating paste.
- Made in France

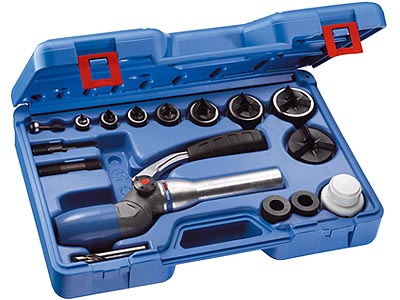

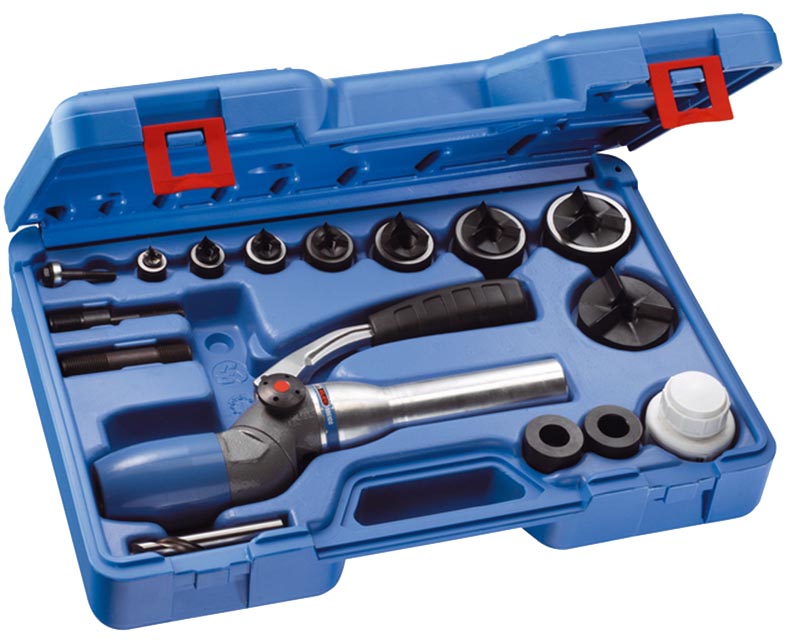

The FACOM 658689 is a professional-grade 16-piece dual-position hydraulic knockout driver and ISO-size hole punch set. Manufactured in France, this specialized industrial system is engineered for sheet metal fabricators, industrial panel builders, and commercial electricians to punch perfectly round, burr-free entry holes into steel panels, enclosures, and terminal boxes with minimal manual effort.

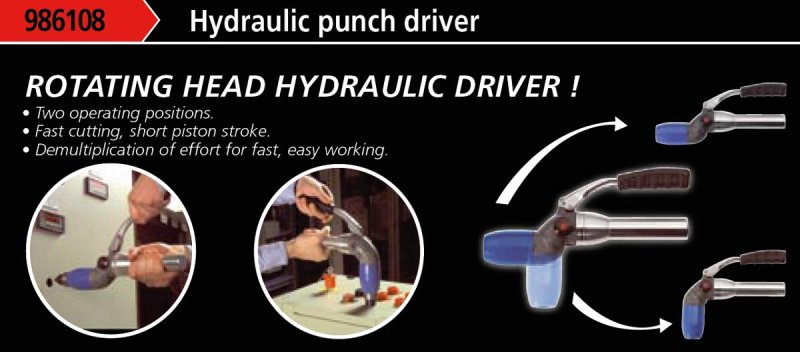

- Dual-Position Hydraulic Driver: The core hydraulic tool features an adjustable body that can be manipulated into two mechanical working positions. This flexibility allows the operator to actuate the pump at straight or offset angles, navigating tight spaces inside electrical cabinets or machine walls.

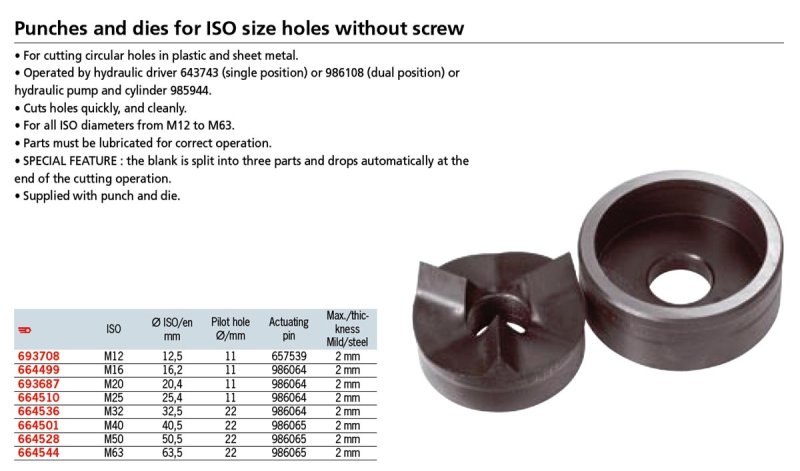

- 8-Piece Metric ISO Punch Set: Comes fully equipped with high-strength carbon steel male/female punches and dies matching common ISO conduit sizing metrics: M12 • M16 • M20 • M25 • M32 • M40 • M50 • M63.
- Drive Axles & Spacers: Includes 3 high-tensile driving axles/draw studs (
6mm, 9.5mm, and 19mm) to handle the different load distribution pressures of small to large die pairings, alongside 2 dedicated spacer bushings (No. 1 and No. 2).
- Prep Accessories: Includes an 11mm pilot drill bit to bore the initial draw-stud anchor hole and a jar of specialized high-pressure lubricating paste to protect the threads and dies from tearing under hydraulic tension.
- Kit Weight & Footprint: The entire 16-piece heavy-duty setup is organized in a fitted, impact-resistant carrying case weighing 7.28 kg (approx. 16 lbs).
|
