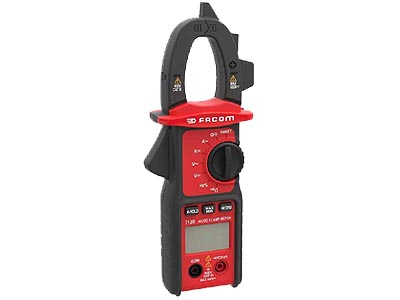

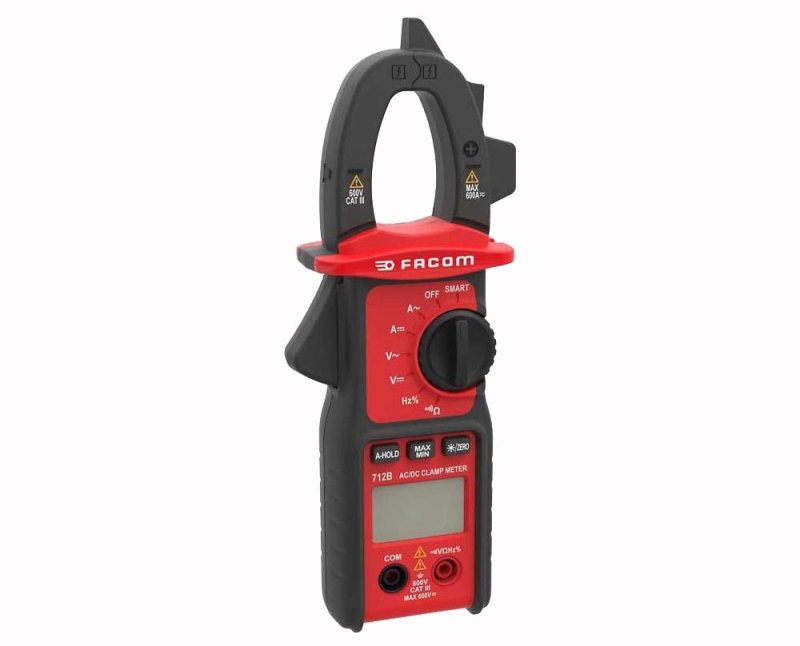

(712B) -Smart Clamp-on Digital Multimeter

Facom Smart Multimeter (712B) - replacement for Facom 712A. Multimeter with SMART technology. Easy to use: 1) Turn the rotary knob to the SMART position 2) The multimeter automatically selects the setting: AC or DC / Resistance or continuity 3) Connects the pins to the circuit; automatic evaluation on screen 4) AC voltage or DC voltage and continuity or resistance are measured simultaneously. User no longer needs to select AC / DC or resistance.

General Specifications

• Safety rating: CAT III 600V
• Max. operating altitude: 2000m
• Operating temperature: 0~40°C, <80% RH
• Storage temperature: -10~60°C, <70% RH (battery removed)
• Coefficient: 0.1 accuracy/°C
• Max. voltage between terminals and ground: 600V DC or AC rms
• Sample rate: Approx. 3 times/sec
• Display: digit LCD (max. display: 5999/1999 (Resistance))
• Over-range indication: Display only shows "OL"
• Low battery indication: When battery voltage drops below operating voltage," "symbol appears on the display
• Polarity indication: automatically displays "-"
• Power: 3x 1.5V AAA batteries
• Dimensions: 215mmX79mmX39mm
• Weight: 195g
• Max. jaw opening: 26mm
