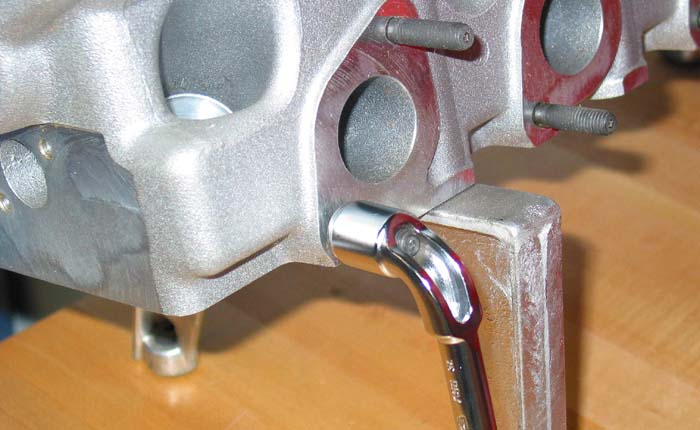

Facom Angled Open-Socket Wrench (75 series)(12mm) - deep recess at one end and open end socket at the other fit over protruding studs (6-point, both ends). The angle and through hole design accommodates threaded rods or a bar for extra leverage without affecting wrench strength. This is one of my favorite Facom products for field installations (cabinets, shelving, garage door track, etc). Current supply was made in Czech Republic. Future supply will be made in China. This size is included with the MODM.75 foam tray module but not with the MOD.75-1 plastic tray module.

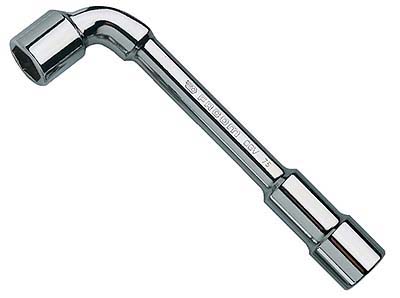

The FACOM 75.12 is a professional-grade 12 mm metric angled open-socket wrench (often called a "forged pipe wrench" or "bent socket wrench"). It features a unique 6-point (hexagon) output on both ends combined with a hollow design that allows long threaded studs or bolts to pass all the way through the tool.
- Size Configuration: 12 mm on both the short angled head and the long straight shank.

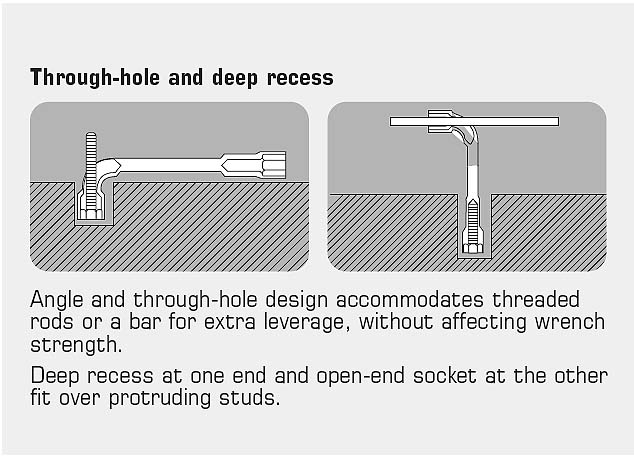

- Pass-Through Geometry: The elbow features a deep hollow recess on the long shank and an open-ended pass-through hole on the short angle. This lets you spin nuts down long structural studs where standard deep sockets or box wrenches bottom out.
- Physical Dimensions:
- Overall Length (L): 139 mm
- Head Diameter (d): 18.0 mm
- Short Section Depth (H): 28 mm
- Weight: 105 grams
- Build Quality & Finish: Fully forged from high-performance chrome vanadium steel, finished in a classic satin chrome to resist corrosion and workshop grease.
- Norm Compliance: Certified to exceed international assembly standards NF ISO 2236, ISO 2236, and DIN 475.
Storage & Sets - If you are expanding a modular tool chest setup, this specific 12 mm wrench is part of the standard FACOM 75 Series family. It is one of the primary tools meant to sit inside the two-color PM.MOD75 foam storage tray module.
