(83300492228)-BMW Factory Tool-Subframe Bushing R&R Tool Set (part 333120, see details)-E32/E34/E36 (1 available)

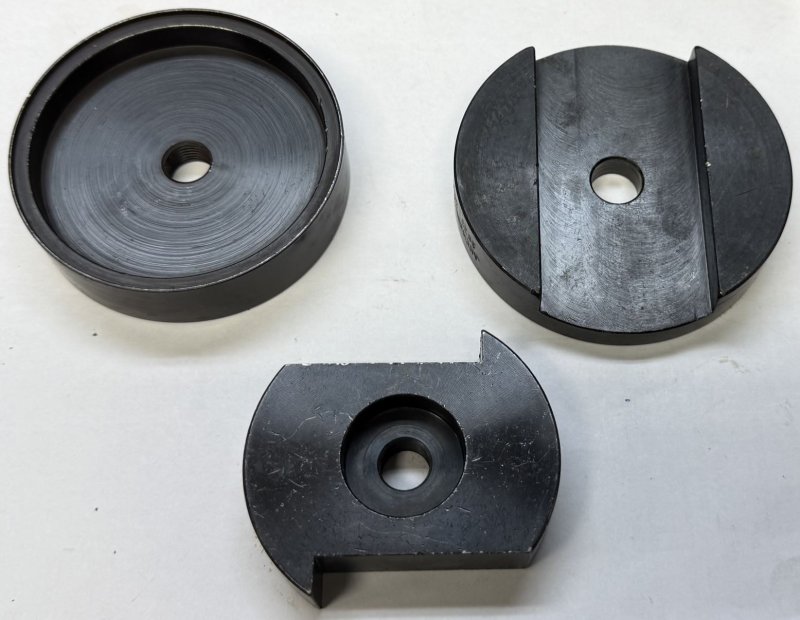

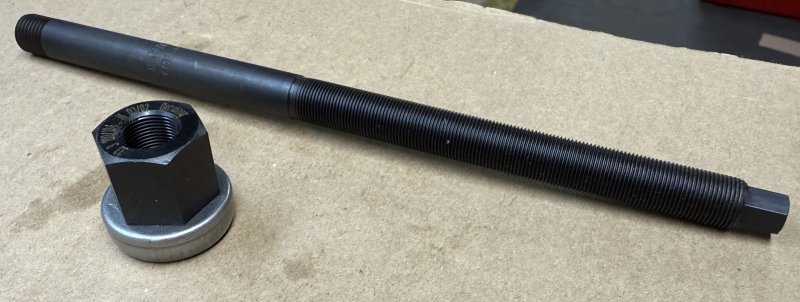

BMW Factory Tool-Subframe Bushing R&R Tool Set (part 88886333120)-E32/E34/E36 - this 3pc cap set is used for the removal and installation of the bushings.  This kit and the others for the E28, E30, etc require the threaded rod (83300492218, #333103) and the 24mm hub nut (83300492219, #333104). The photo shows these 2 parts but they are NOT part of this 3pc kit.

Part numbers in the kit are 333121, 333122 and 333123. If you have one of the old blue binder factory manuals, they often refer to these BMW tools with the abbreviated 6 digit numbers  (last 6 digits of the factory part number).
