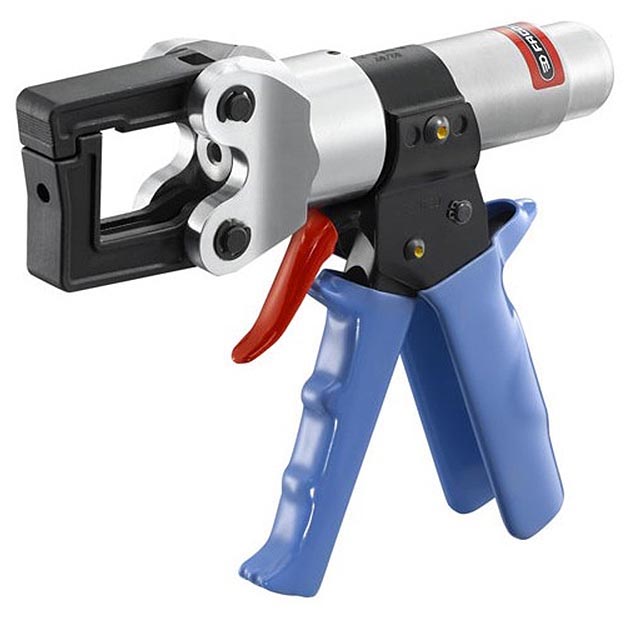

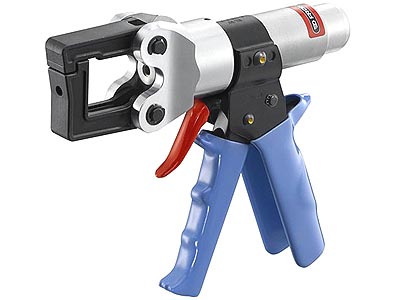

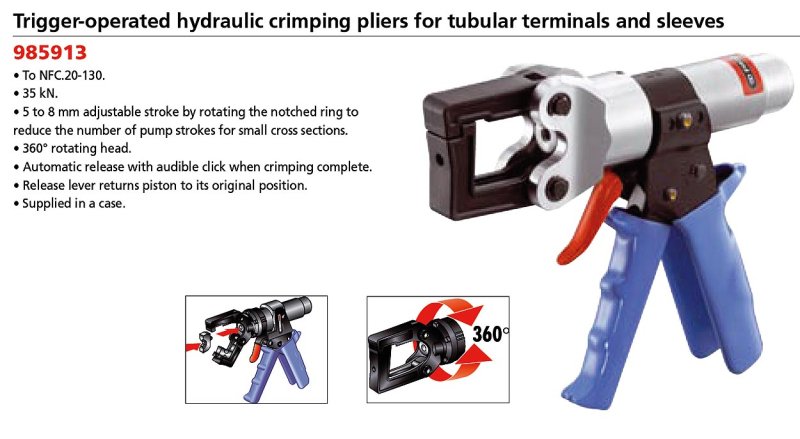

Facom Trigger-operated hydraulic crimping pliers for tubular terminals and sleeves -
- 5 to 8 mm adjustable stroke by rotating the notched ring to reduce the number of pump strokes for small cross sections.
- 360° rotating head.
- Automatic release with audible click when crimping complete.
- Release lever returns piston to its original position.
- 10 die sizes available (6>150 mm2)

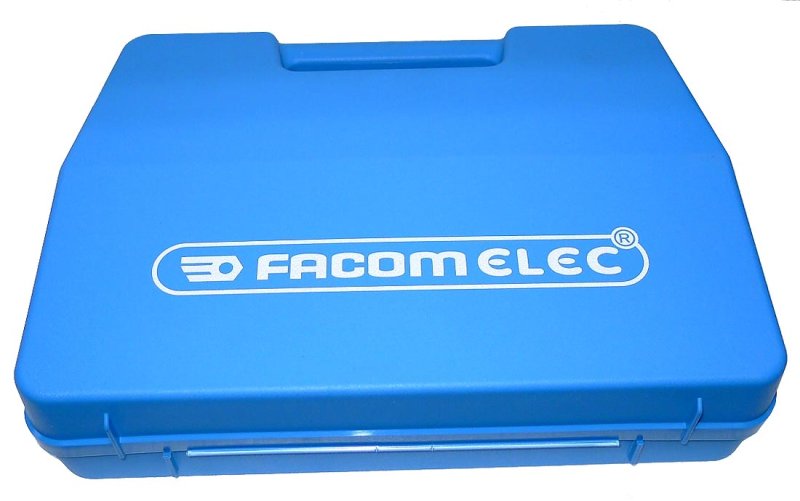

- Supplied in a case.
- Made in France
The FACOM 985913 is a professional, trigger-operated manual hydraulic hex die crimping tool belonging to the FACOM 2020 series. It is explicitly engineered for industrial electrical contractors to securely crimp heavy-duty tubular terminals, cable lugs, and wire sleeves onto large-gauge electrical lines.
- Crimping Pressure Capacity: Delivers up to 35 kN of specialized mechanical force.
- Adjustable Stroke System: Outfitted with an adjustable internal travel window from 5mm to 8mm, modified by twisting an integrated notched ring. For smaller cross-sections, narrowing this stroke dynamically cuts down on the manual pump cycles needed to complete a compress.
- 360° Rotating Contact Head: Features a fully pivoting die head that rotates a full 360 degrees, allowing operators to position the crimper easily around tricky bundles or restricted junction layouts.
- Acoustic Cycle Completion: Incorporates an automatic mechanical trigger release with an audible "click" to verify optimal pressure delivery, signaling when a crimp is complete so operators never under- or over-compress a terminal.
- Piston Reset Lever: Equipped with an integrated pressure-discharge relief lever that rapidly returns the internal hydraulic piston to its starting alignment.

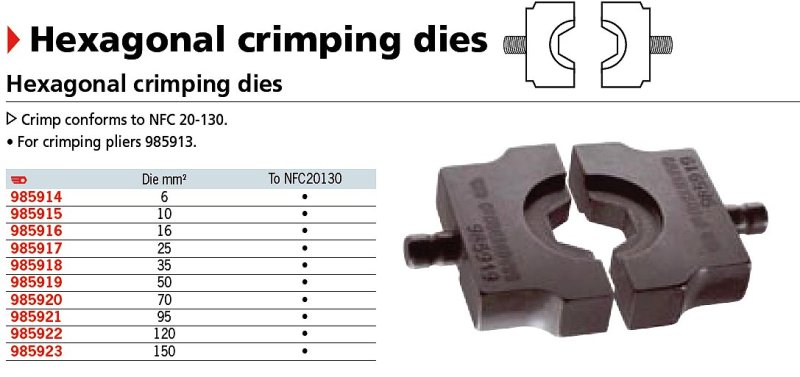

- Cross-Section Scope: Built to hold 10 independent hex die sizes supporting wire connections ranging from 6 mm² up to 150 mm².

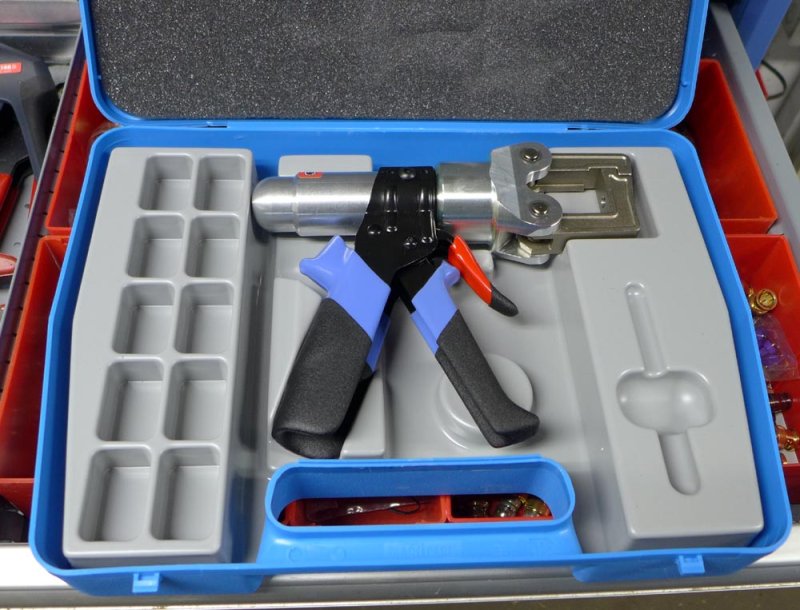

- Standards & Weight: Fully certified to comply with strict NF C 20-130 industrial regulations. The tool carries a physical net unit weight of 2.13 kg and is supplied inside a protective carrying case.
