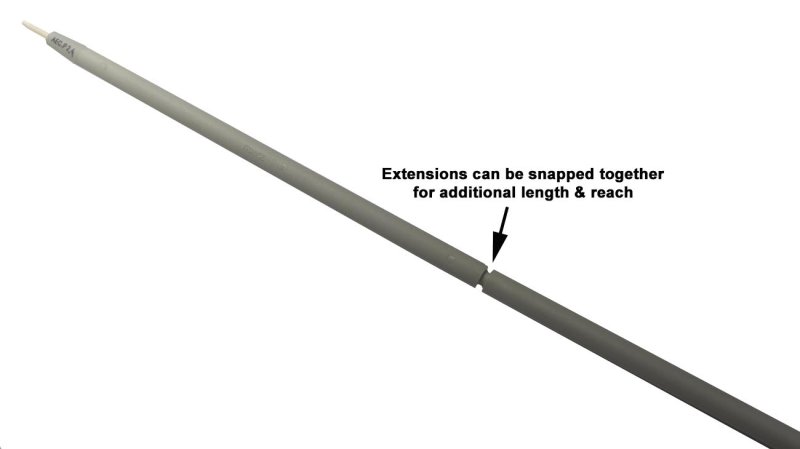

Ceramic-blade Screwdriver Tip 170mm Extension (AEM.R) - Anti-magnetic, antistatic and insulated both electrically and thermally. Ideal for fine tuning in trimming and high frequency applications. Use with AEM.C handle, Facom ceramic tips, or additional extensions for extra reach.

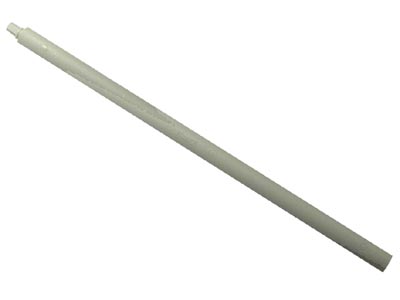

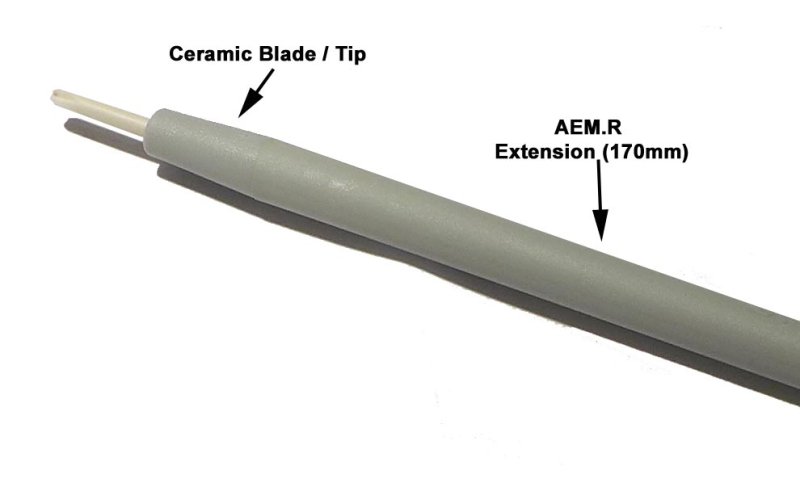

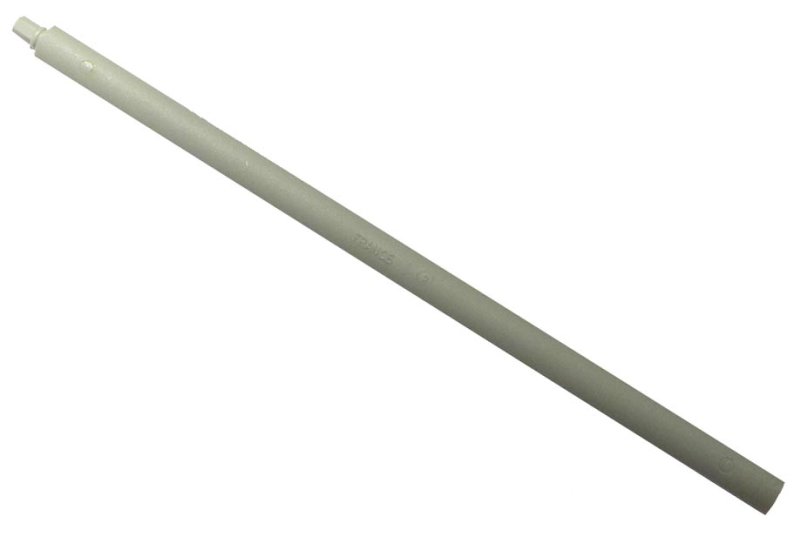

The FACOM AEM.R is a specialized 170 mm extension rod designed exclusively for FACOM's Micro-Tech® ceramic-blade tuning screwdriver system. It integrates seamlessly with the FACOM AEM.M bit-holder handle and interchangeable ceramic screwdriver blades/tips (such as the AEMC series).
Core Technical Profile
- Functionality: Provides 170 mm of extra reach for standard ceramic tuning blades. This allows operators to safely adjust deeply recessed high-frequency components without bringing their hands or larger tool bodies too close to live, sensitive circuitry.
- Material Properties: Inherently anti-magnetic, anti-static, and insulated both thermally and electrically.
- Application Focus: Essential for fine-tuning trimmers, variable capacitors, and high-frequency RF equipment where introducing ferrous metals or static electricity would disrupt electronic calibration parameters or cause short circuits.
| Tool Component |
Part Number |
Main Function |
Material Attribute |
| System Handle |
AEM.M |
Micro-Tech bit-holder driver handle |
ESD-safe, ergonomic precision grip |
| Extension Rod |
AEM.R |
Provides 170 mm extended deep-reach access |
Non-magnetic, anti-static, insulated |
| Compatible Tips |
AEMC / Series 0 |
Ceramic slotted, Phillips, and tuning blades |
Non-conductive Zirconia ceramic |
|
