(ESI-072103)-1/4" Flow S1 Safety Coupler-1/2"NPT Female (for Panel Installations) (1 available)

0.35 Lbs
 In stock
$86.25 $72.00

Description:

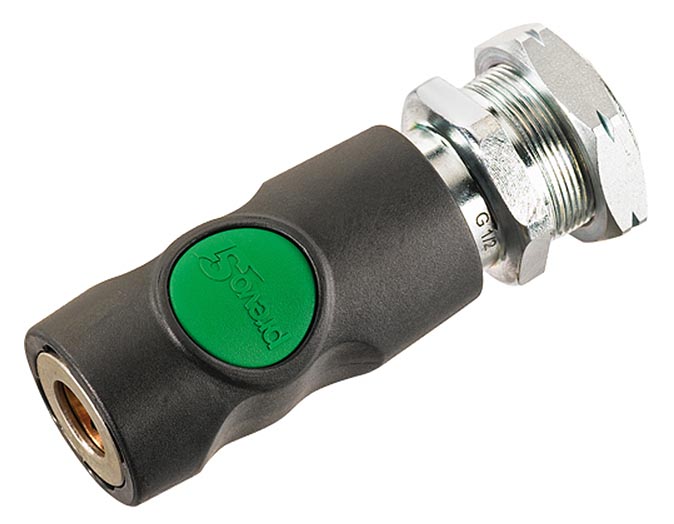

Prevost S1 Safety Coupler (Hi-flow Profile, 1/2" Female) - for Bulkhead/Panel installations..... Prevost has discontinued this product. I only have 1 left in stock.

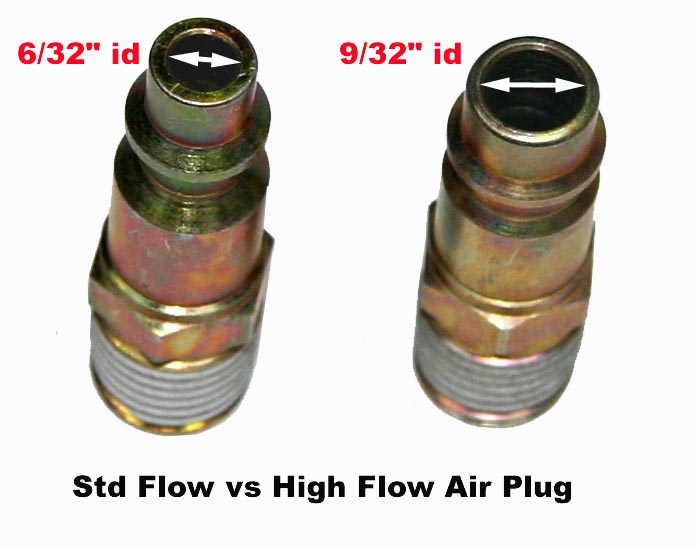

For use with "high flow" plugs. Vents line pressure and disconnects from the pneumatic system with a single push of the button. See S1 coupler video.

  • Controlled safe uncoupling
  • Avoids risk of dangerous "hose whip" or accidental disconnection
  • Automatic pressure venting and disconnection
  • Optimised flow rate, limited pressure drop

Technical features of this coupler include........

  • 1/4" Flow (37.7cfm)
  • 1/2" NPT Female

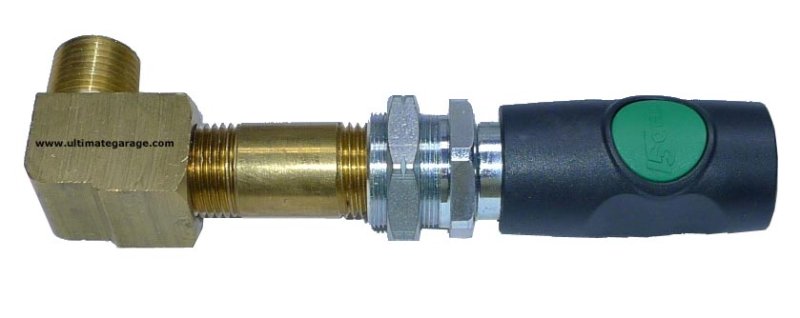

  • Requires panel hole of 1 1/16" (27mm) for installation
  • Accommodates panel thickness of 2-11mm
  • Heavy duty composite (scratch free) body
  • European High Flow Profile
  • Nitrile seals for leak free connections
  • Impact resistant plastic composite body
  • Max service pressure - 174psi
  • Anti-static
  • Easy to connect under pressure
