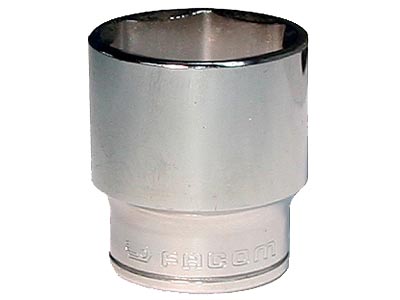

Facom 3/8" Drive 6pt Socket - "OGV" profile allows greater torque transfer without damage to the fastener. Chrome finish. Facom discontinued production of all 3/8" drive 6pt fractional sockets in 2014 (they are only available in 12pt). Made in France
The designation FACOM J.11/16H refers to a professional-grade 3/8-inch square drive fractional 11/16" standard 6-point (hexagon) rigid socket. In FACOM's part numbering logic, the prefix "J" represents the 3/8-inch square drive line, "11/16" is the fractional sizing, and the suffix "H" specifies a 6-point single-hexagon profile (whereas a standard J.11/16 without the "H" designates a 12-point bi-hexagon profile)
The socket features FACOM’s high-performance OGV (Orientation de la Géométrie en Vague) profile. This geometry moves the driving contact zone away from the sharp, fragile corners of the 11/16" bolt onto the flatter, stronger flank faces, delivering a massive increase in torque while safeguarding old or soft fasteners from rounding out.
- Drive Interface: 3/8" Square internal drive
- Fastener Opening Size: 11/16" Fractional (Imperial / AF)
- Socket Profile Layout: 6-point (Single hexagon)
- Overall Socket Length (L): 30.0 mm to 33.0 mm (Standard shallow clearance footprint)
- Material Construction: Forged Chrome Vanadium steel
- Surface Finish: High-polish bright chrome plating
- Industrial Benchmarks: Manufactured to strictly satisfy ASME B107.5 socket standards.
FACOM 11/16" Sizing Configurations
| Part Number |
Drive Size |
Drive Profile |
Socket Depth Style |
Clearance Height (Length) |
Key Advantage |
| J.11/16H |
3/8 inch |
6-point (Hex) |
Standard Shallow |
~30.0 mm |
Maximum bite force on stubborn/seized bolts |
| J.11/16 |
3/8 inch |
12-point (Bi-Hex) |
Standard Shallow |
33.0 mm |
Fast index engagement in cramped spaces |
| J.11/16LA |
3/8 inch |
12-point (Bi-Hex) |
Deep Well |
63.8 mm |
Reaches deep recessed nuts and long studs |
| J.11/16F |
3/8 inch |
12-point (Bi-Hex) |
Flex Joint Swivel |
54.5 mm |
Built-in hinge for tight angular alignment |
