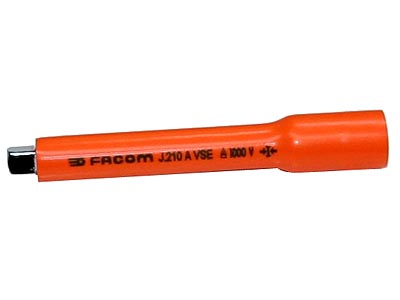

Facom 3/8" Drive 1000v Insulated Extension - 6" (150mm). Should be used with an insulated ratchet/torque wrench, T-handle or other insulated driver (from Facom/USAG, Cementex or Salisbury) with insulated sockets to ensure adequate protection. Made in France.
The FACOM J.210AVSE is a professional-grade 3/8" square drive insulated extension bar. Measuring 150 mm (6 inches) in length, it is engineered specifically for safely performing maintenance and adjustments on live high-voltage lines, industrial electrical panels, and electric vehicles (EVs).
Core Insulation & Safety Standards - The extension features a thick, highly visible orange protective coating designed to eliminate catastrophic short circuits or arcing if the tool contacts exposed components.
- Voltage Rating: VDE certified for complete protection up to 1000V AC and 1500V DC.
- Safety Certifications: Extensively tested and compliant with international standards EN 60900, IEC 60900, DIN EN 60900, ISO 3316, and ASME B107.10.
Technical Dimensions & Materials
- Drive Size: 3/8" Square Drive (9.53 mm).
- Overall Length: 150.0 mm.
- Outer Diameter: 17.0 mm (with insulation factored in).
- Material: Forged from high-grade chrome-vanadium alloy steel for maximum durability beneath the insulated layer.
System Integration - To maintain full 1000V protection, the J.210AVSE must be deployed alongside complementary insulated components within FACOM's VSE series framework:
- Insulated Drivers: Operates seamlessly with the J.151AVSE 3/8" insulated ratchet or the J.121AVSE insulated T-handle grip.
- Insulated Sockets: Direct, locked-in fit with FACOM’s J.AVSE metric 12-point insulated sockets and hex bit sockets.
- Master Set Inclusion: It serves as the core extension bar included inside the J.401AVSE 17-Piece Premium Electrical Tool Kit
