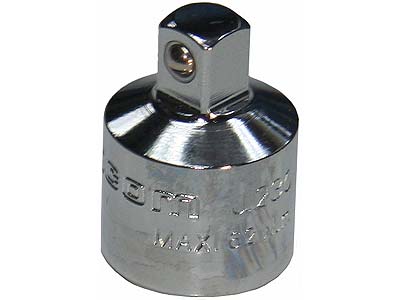

Facom 3/8" Drive Adapter/Coupler (3/8" to 1/4") . Chrome finish. Maximum torque = 47 ft lbs (62nm). Overall height = 24.5mm.
The FACOM J.230 is a professional-grade 3/8" square female to 1/4" square male drive socket reducer (coupler). It belongs to FACOM's compact Junior 3/8" range and is engineered to adapt 1/4" drive sockets and accessories for use with standard 3/8" ratchets, extensions, and breaker bars.
- Drive Conversion: 3/8" female square input input to 1/4" male square output.
- Maximum Torque Capacity: Rated for up to 62 N.m of maximum structural torque, ensuring it withstands standard hand-tightening pressure without breaking.
- Locking Mechanism: Equipped with an integrated spring-loaded ball detent on the male drive end to safely lock attached 1/4" sockets in place during use.
- Compact Physical Footprint:
- Overall Length: A stubby 24.5 mm profile to keep profile extensions minimal in tight automotive or mechanical spaces.
- Product Weight: Highly agile at just 25 grams (0.025 kg).
- Finish & Composition: Forged premium steel finished in a high-visibility bright chrome coat to resist mechanical abrasion, grease, and rust.
- Norm Compliance: Fully manufactured to surpass international workshop assembly benchmarks ISO 3316, NF ISO 3316, DIN 3123, and ASME B107.10.
