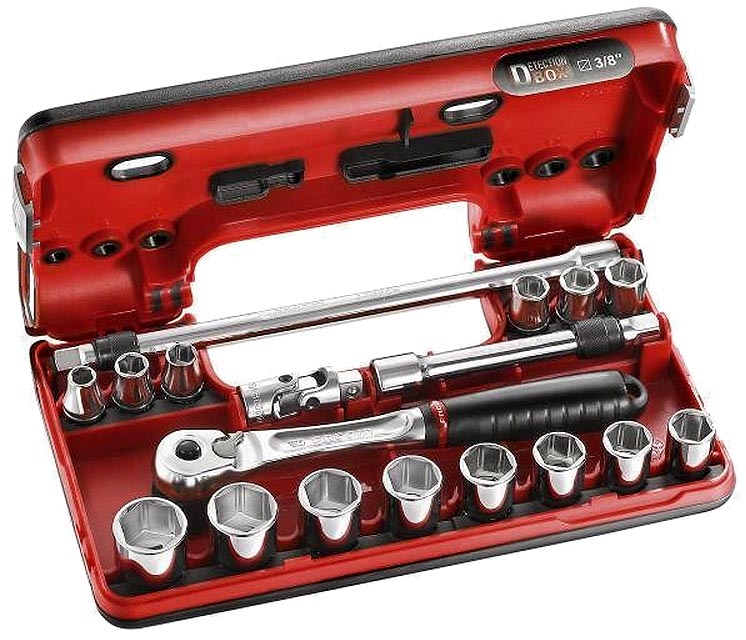

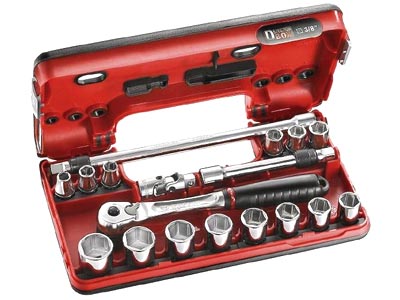

Facom 3/8" Drive 6pt Metric Tool Set with Locking Pear Head Ratchet & Detection Box (JL.DBOX500) - Facom's tool sets have always been nicely packaged and the company has avoided using the typical "blow-mold" cases found among most of the import brands. Their new "Detection-Box" Series takes design and innovation a step further with a compact case that allows the user to do a full inventory of tool contents, even with the case closed. As such, these new sets meet FOD (Foreign Object Damage) regulations in those industries impose tight security measures and demand high-performance tools and equipment.
The body of the case is made of two materials and the rigid sections provide high resistance. It's also equipped with metallic clasps and hinges, tested for thousands of openings and closures. Developed by the Facom R&D department, the case boasts additional benefits:
- It can be stored in any of their roller cabinet drawers including the slimmer ones and takes the place of a "standard-width" Facom tool module
- It easily stands vertically and remains stable
- Its "soft" surface avoids slipping and does not scratch
- Its comfortable handle makes it easy to carry.
- See Video
This Detection Box set includes Facom's JL.171 Locking Pear-Head airtight dust proof ratchet for use in all working conditions........
- JL.171 Locking Pear Head Ratchet
- 3/8" Drive 6pt Shallow sockets...8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21 & 22mm
- Locking Extensions-5" and 10" (J.210RC and J.215RC)
- Universal Joint (J.240A)
- Detection Box (BV.J1NANO)
- Dimensions - 275 x 150 x 50 mm (10.8" x 5.9" x 2")
- Weight with Tools -2.05 kg (4.5 lbs)
The FACOM JL.DBOX500 is a professional-grade 18-piece 3/8-inch square drive metric 6-point socket set. It is housed in FACOM's innovative "Detection Box" (D-Box) case. The primary feature of the Detection Box is its highly rigid, dual-material layout that allows you to do a full visual inventory of the set's contents—even when the case is securely closed. This design allows the kit to strictly adhere to Foreign Object Damage (FOD) reduction regulations, making it highly favored in precision aerospace, military, automation, and industrial maintenance environments where left-behind tools pose severe safety risks.
Complete Kit Component Breakdown - The 18-piece kit comes curated with high-performance 3/8" square drive components:
- 1 x JL.171 Sealed Locking Ratchet: A premium, high-efficiency maintenance-free pear-head ratchet featuring a watertight internal mechanism and a secure push-button socket locking/release design.
- 14 x 6-Point Metric Hex Sockets (J.H series): Continuous size coverage matching 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, and 22 mm.
- 2 x J.RC Locking Extensions: Built with manual slide-locking collar safety sleeves to prevent extension-to-socket separation during use.
- J.210RC: 125 mm length
- J.215RC: 250 mm length
- 1 x J.240A Universal Joint: A friction-pinned cardanic flex joint to facilitate angular approach adjustments.
Technical & Dimensional Specifications - Exact operational data and parameters from the FACOM Technical Datasheet include:
- Drive Interface System: 3/8 in. Square Male/Internal Drive
- Socket Profile Layout: 6-Point (Single Hexagon) profile geometry
- Case Dimensions: 330 mm Long x 185 mm Wide x 55 mm High
- Total Set Weight: 2.10 kg (approx. 4.63 lbs)
- Material Finish: High-strength Chrome Vanadium steel coated in polished bright chrome
|
