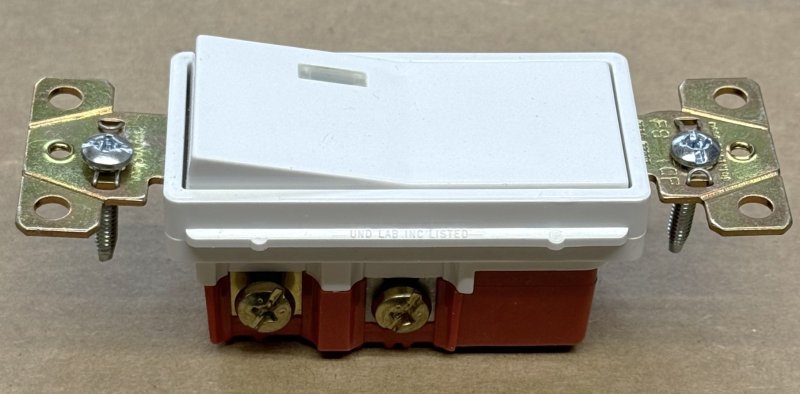

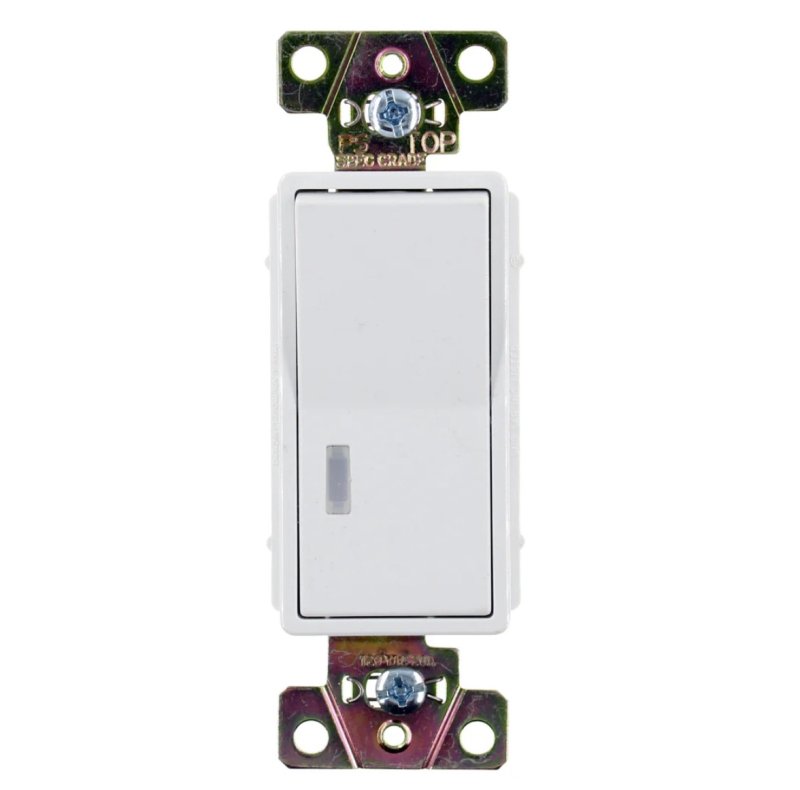

Pass & Seymour 20a Illuminated Decora Switch-White (single pole) - illuminated when off. I have these throughout my house. Bought more than I needed. Pass & Seymour (Le Grand) has been my brand of choice for many years. Buy 4, get one free. (13c)
The P&S 2625-W refers to the Pass & Seymour (by Legrand) 20A 120V Specification Grade Single-Pole Illuminated Decorator Paddle Switch finished in White. This is a premium, industrial/commercial-grade rocker switch designed to glow softly when the connected light load is turned off, making it easy to find in the dark.
- Electrical Ratings: 20 Amp capacity • 120 VAC operational voltage • 1-Watt power consumption • 1 HP @ 120 VAC / 2 HP @ 240 VAC motor rating.
- Illumination Feature: Built-in pilot light illuminates the paddle housing internally when the switch is in the "OFF" position.
- Wiring System: Internal screw-pressure-plate back and side wiring layout. It easily accepts #14 to #10 AWG solid or stranded copper/copper-clad wiring. No neutral wire is required for installation.
- Structural Durability: Forged with an impact-resistant polycarbonate back-body and frame. It features high-conductivity serrated brass terminals for maximum wire grip alongside silver alloy butterfly contact points to reduce moving parts and extend mechanical lifespan.
- Safety & Compliance: Fully certified under UL 20 and CSA standard C22.2. It includes an auto-grounding clip for metal electrical box installations
