Facom Rotator Ratchet Bit Set-23pc (R.PE360J22) - ultra-compact tool set (Facom's PICO cases are smaller than the NANO sets) with a rotator bit ratchet (R.PE360), 1/4" drive socket adapter, and 21 bits. Handle has a Twist Action (in both directions) which allows fasteners to be tightened or loosened without moving the ratchet handle. Ideal for working in confined spaces and quicker to use than a conventional ratchet handle. Includes the following......
- R.PE360 - Compact rotator bit ratchet (60 teeth 6° increments)
- ED.1T Pozidriv® bits: PZ1 PZ2 PZ3.
- EH.1 Hex bits: 3 4 5 6 7 mm.
- EP.1T Phillips® bits: PH1 PH2 PH3.
- ES.1T Slotted bits: 4.5 6.5 8.0 mm.
- EXR.1 Resistorx® bits: TT 10 TT 15 TT 20 TT 25 TT 27 TT 30 TT 40.
- ECR socket holder bit - for the use of 1/4" drive sockets with the R.PE360 ratchet

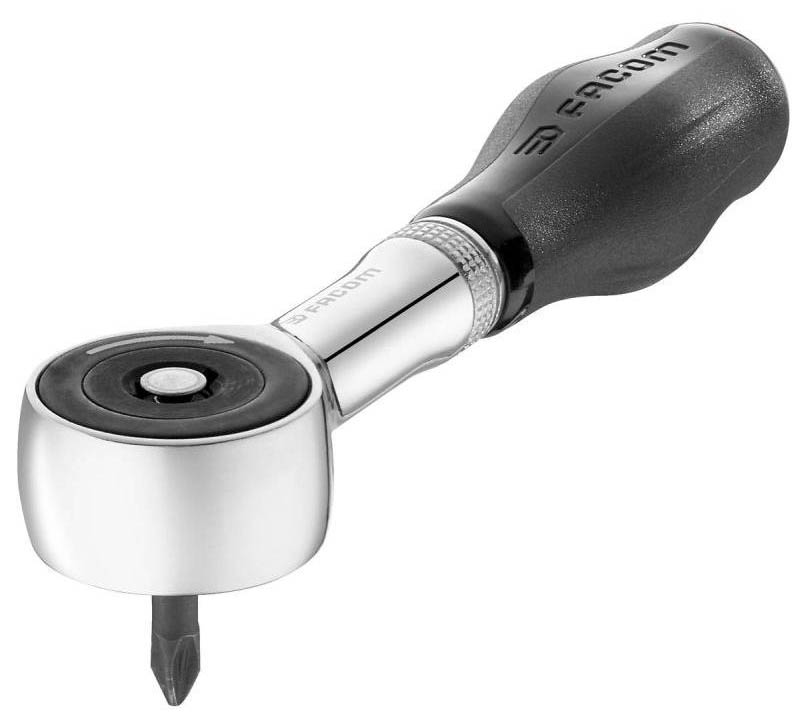

The FACOM R.PE360J22 (also designated as R.PE360J22PB) is an ultra-compact 22-piece PICO series tool set featuring FACOM's unique 1/4-inch hex drive "Rotator" twist-handle bit ratchet. The defining characteristic of the included R.PE360 ratchet is its bi-directional twist-action handle. Twisting the handle rotates the drive head in either direction, allowing you to fasten or loosen screws in highly confined spaces where a conventional standard ratchet swing is completely impossible. It features a 60-tooth fine mechanism (yielding a 6° increment during normal ratcheting) and bidirectional operation controlled by a rotating ring at the head.

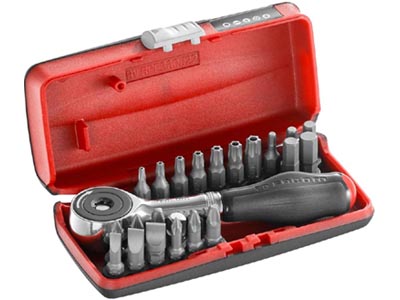

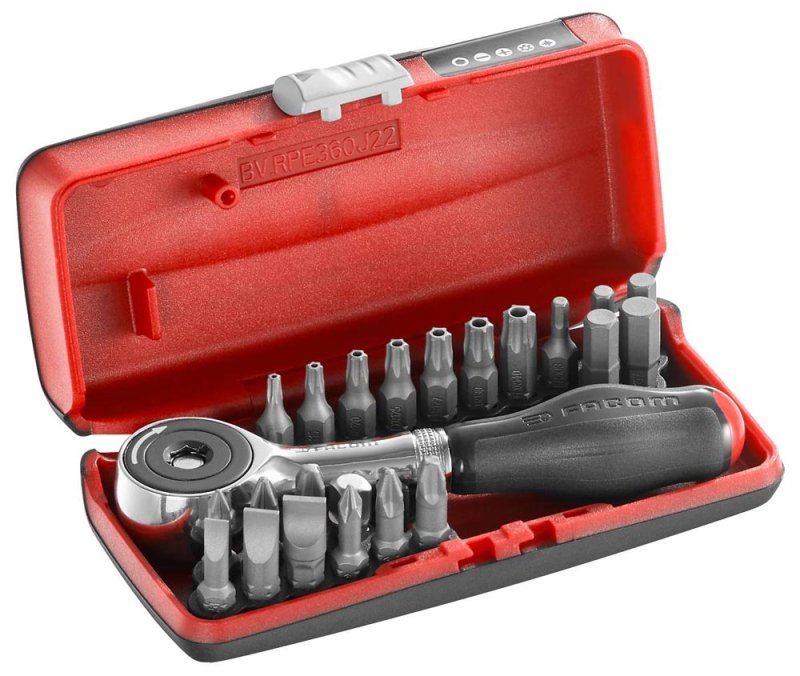

Kit Component Breakdown - The set comes enclosed in an ultra-compact hard plastic PICO case containing the following 23 pieces:
- 1 x R.PE360 Ratchet: 1/4" Hex bit holder with a rotary twist-action handle.
- 21 x High-Performance Series 1 Bits (25 mm Length):
- Resistorx (Security Torx): TT10, TT15, TT20, TT25, TT27, TT30, TT40
- Hex / Allen: 3 mm, 4 mm, 5 mm, 6 mm, 7 mm
- Phillips: PH1, PH2, PH3
- Pozidriv: PZ1, PZ2, PZ3
- Slotted: 4.5 mm, 6.5 mm, 8.0 mm
- 1 x ECR 1/4" socket adapter bit to seamlessly run standard 1/4" sockets off the hex ratchet
Product Dimensions & Weight
- Total Length: 152 mm
- Total Height: 48 mm
- Total Kit Weight: 550 g (1.2 lbs)
|
