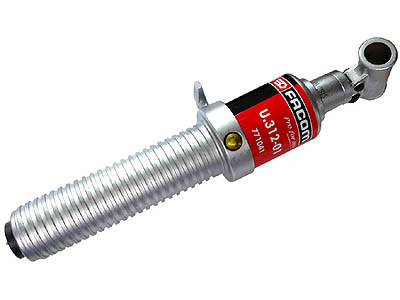

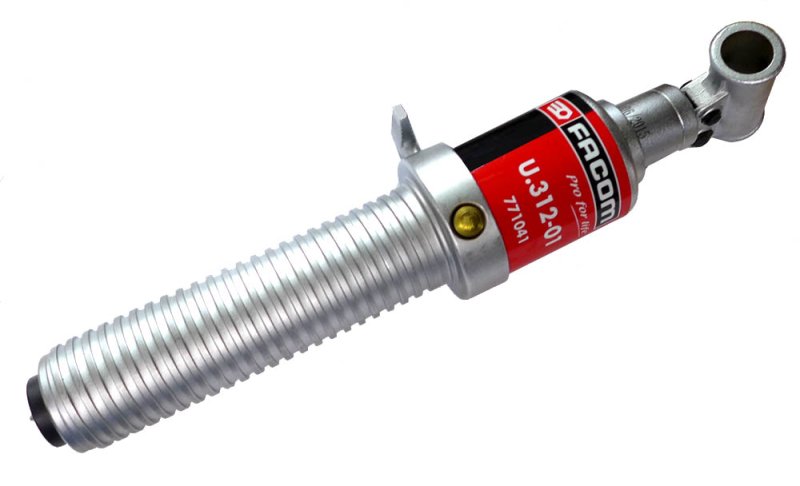

(U.312-01) -10 Ton Hydraulic Jack (for U.312HJ3/HJ4)

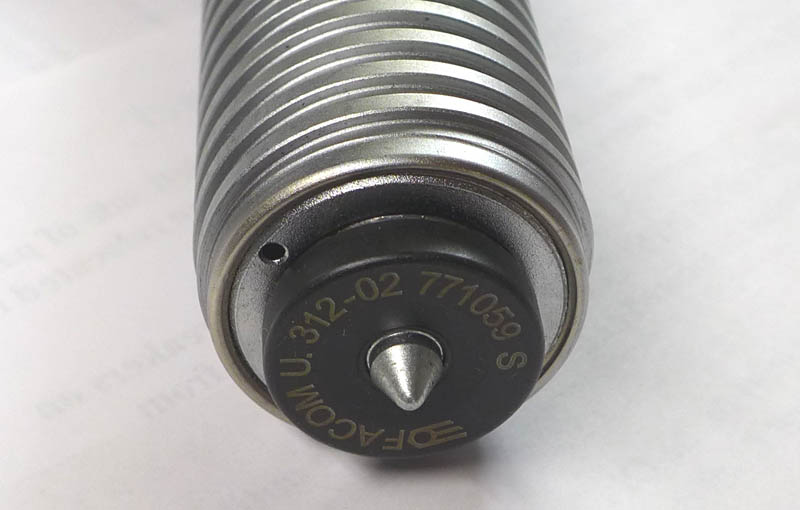

Facom 10-Ton Hydraulic Jack Cylinder (U.312-01)........replacement jack for Facom Hydraulic pullers U.312HJ3 and U.312HJ4. When purchased as a replacement component, the cylinder typically comes standard with the U.312-02 Guide Insert (Guide Tip), which attaches to the end of the spindle to help center the pulling force and protect the shaft being worked on. (2288)

• Force Capacity: 10 Tons (100 kN)
• Piston/Spindle Travel: 80 mm (3.15 inches) stroke
• Total Weight: 2.3 kg (approx. 5 lbs)

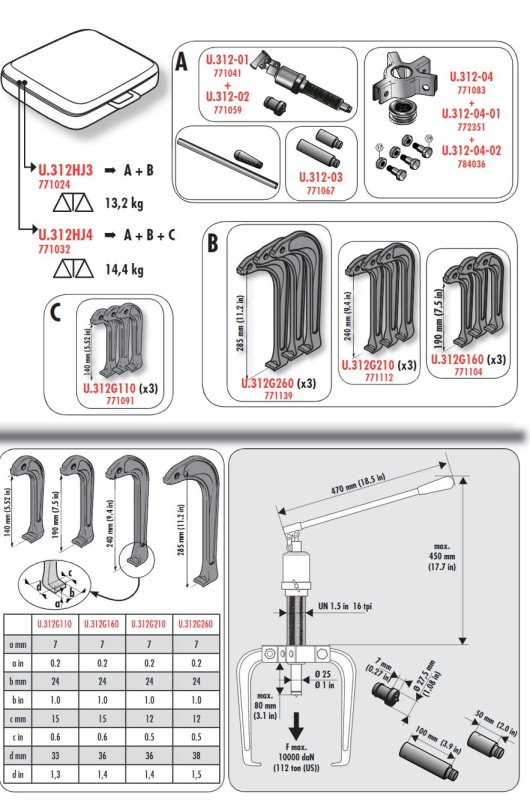

• Compatibility: Designed explicitly for hydraulic puller bodies and setups like the U.312H, U.312HJ3, and U.312HJ4 packages.
