(U.53T4) -Separator for Bearing Extractions (20-180mm) (Facom) (1 available at this price) ($$$)

18.41 Lbs
 In stock
$1,542.00 $695.00

Description:

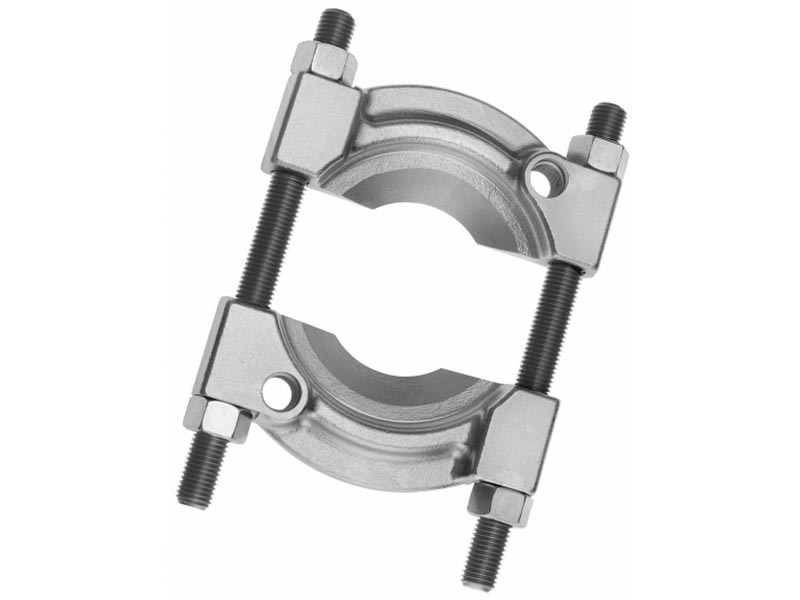

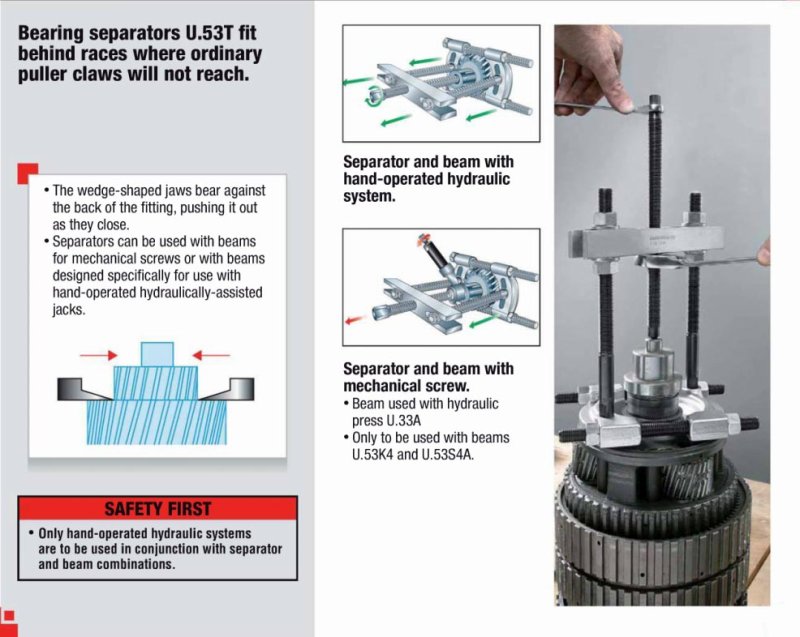

Facom Separator for Bearing Extractions (20-180mm)(U.53T4) - Fits behind races where ordinary puller claws will not reach. They can be used with beams assisted by screws or jacks. Click on photos to enlarge for further details and specifications.



The FACOM U.53T4 is a professional mechanical bearing separator designed to fit into tight spaces behind bearing races where standard puller claws cannot reach. It is engineered for use with threaded pull rods, mechanical beams, or hydraulic jacks to execute seamless, controlled extractions.



The precise engineering metrics for the U.53T4 include:

  • Clamping Range (Spread): 20 mm to 180 mm
  • Tie Rod Thread Diameter (d1): M22
  • Clamping Screw Thread (d2): M22
  • Total Width (L): 360 mm
  • Total Height (H): 289 mm
  • Weight: 8.20 kg (approx. 18.4 lbs)
  • Compatibility: Designed for use with FACOM U.53K4 and U.53S4A puller setups

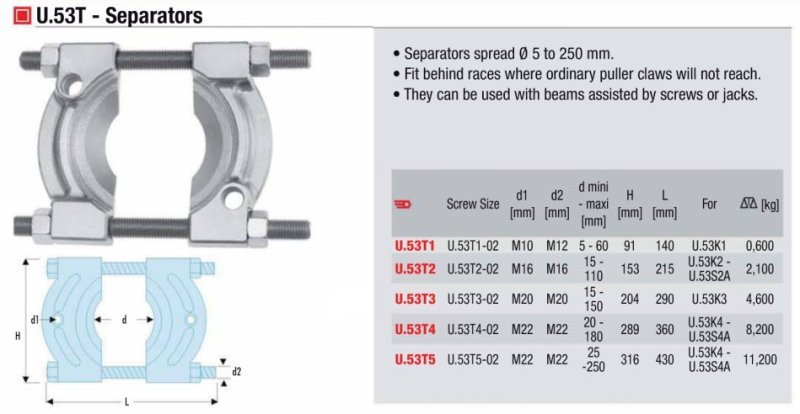

Model Variant Clamping Capacity (mm) Tie Rod Thread Length (mm) Weight (kg)
U.53T1 5 – 60 M10 140.0 0.6
U.53T2 15 – 110 M16 215.0 2.1
U.53T3 15 – 150 M20 290.0 4.6
U.53T4 20 – 180 M22 360.0 8.2
U.53T5 25 – 250 M22 430.0 11.2
