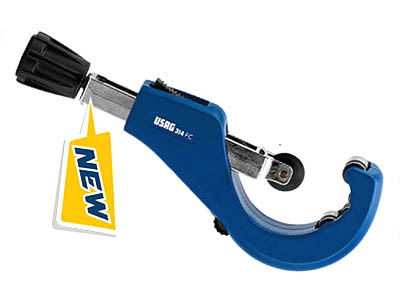

USAG Pipe Cutter for PVC & Plastic Piping (6-76mm, 1/4-3")(314FC) - introduced in 2017 with increased capacity (3" max diameter and up to 11/32" wall thickness)....

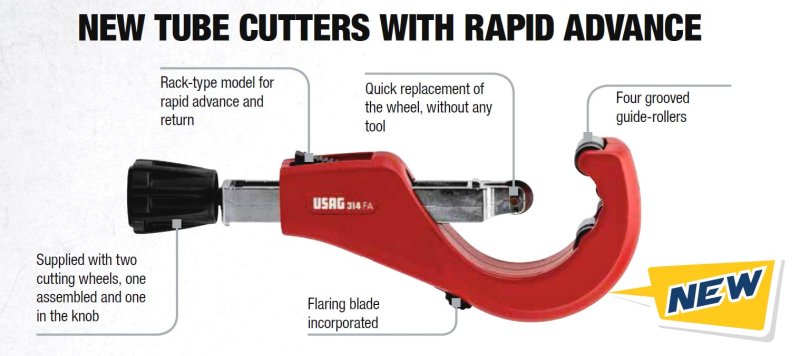

- Rack-type model for rapid advance and return
- Four guide-rollers for cutting flanged tubes
- Quick replacement of the wheel, without any tool
- Ergonomic knob
- Light alloy body
- Enamelled finish
- Maximum tube thickness: 8,6 mm
- Flaring blade incorporated
- Supplied with two cutting wheels, one assembled and one in the knob
- Additional replacement wheels available through Ultimate Garage

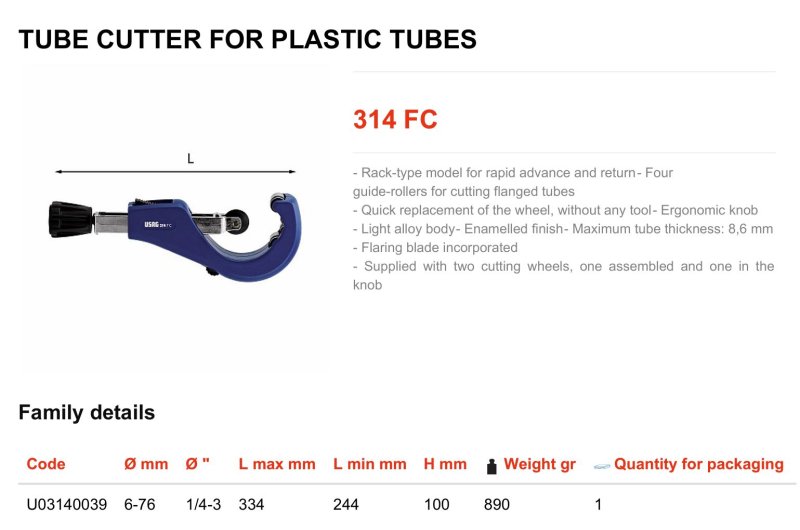

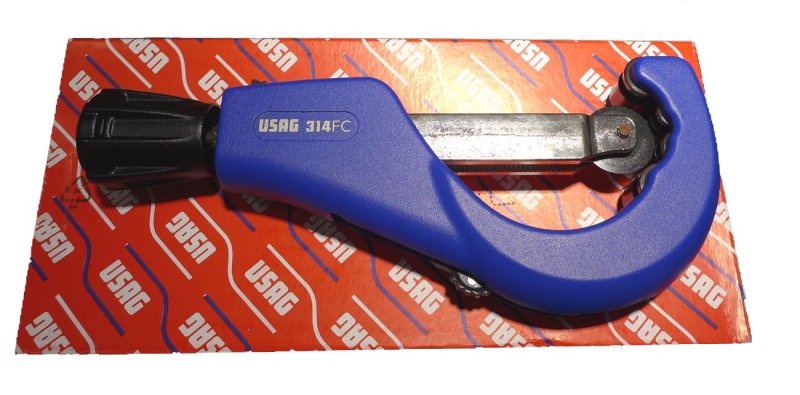

The USAG 314 FC (Official Part Code: U03140039) is a premium, professional-grade telescopic quick-advance pipe cutter engineered specifically for plastic, PVC, PEX, PE, and multilayer composite tubing. Manufactured by the premier Italian tool brand USAG, it shares the exact same physical and structural layout as its Stanley Black & Decker sister tools: the Facom 333C.67M and the Virax 210493. Both of these alternatives are available through Ultimate Garage.
- Cutting Capacity: Handles a wide diameter working footprint from 6 mm to 76 mm (approx. 1/4" to 3").
- Maximum Wall Thickness: Heavy-duty tuning allows it to cleanly slice through plastic walls up to 8.6 mm (approx. 11/32") thick without crushing or distorting the tube shape.
- Rapid Advance Slide: Built with a smooth, rack-and-pinion mechanical slide and a rapid-return button. This lets you push the cutter flush against the pipe wall instantly without manual knob turning.
- 4-Roller Alignment: Outfitted with 4 grooved guide rollers that firmly track the pipe, eliminating spiral deviations and ensuring exact 90° square cuts. The groove placement also allows for flush trimming near flared or beaded tube ends.
- Toolless Wheel Exchange: The central cutting wheel can be replaced quickly completely tool-free. The tool ships from the factory with two cutting wheels—one mounted to the carriage and one spare stowed inside the ergonomic end cap.
- Onboard Tooling: Features a high-quality folding, rotating internal flaring and deburring blade built directly into the light alloy enamelled chassis.
