USAG 1/2" Drive Auto Reset Torque Wrench with Fixed Ratchet Head.....range 40-200nm (30-150 ft lbs). 72 tooth (5 degree increments). Made by USAG in Italy and sold with both USAG and Facom branding (this one is USAG with the US warranty). Replaces the previous S.208A200. Dual scale readout...both ft lbs and nm. Touch and sound signals when preset torque is reached. Accuracy to +/-4%. Supplied in a protective storage tube. Made in Italy. Includes owners manual and calibration report.

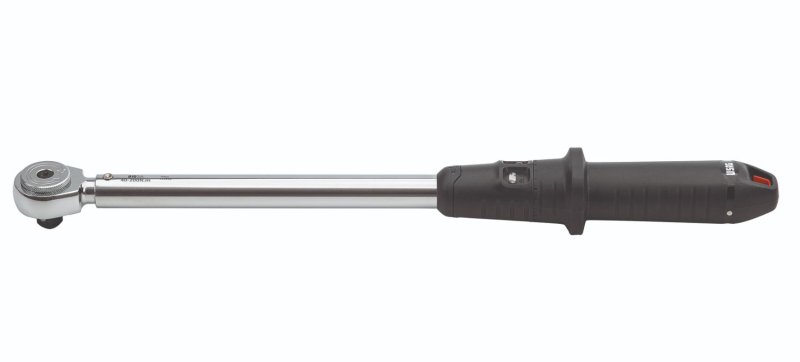

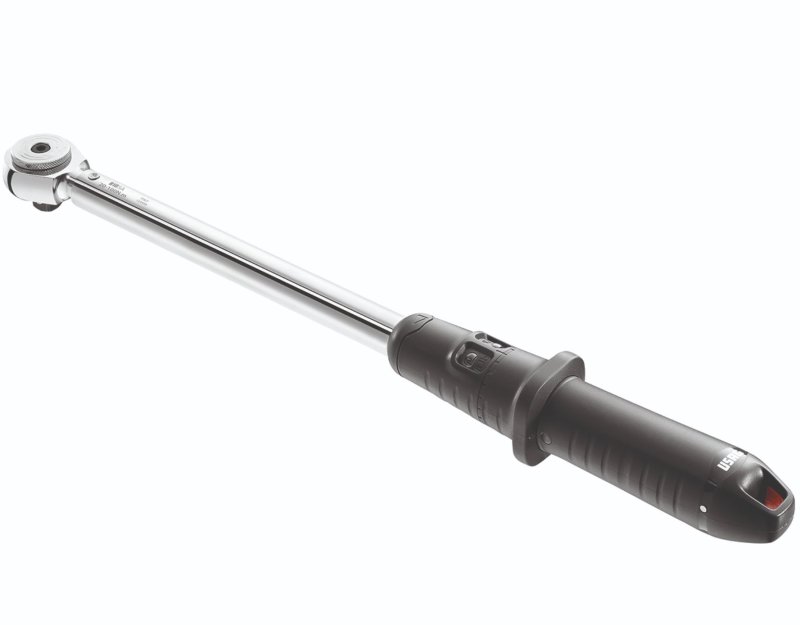

USAG 1/2" Drive Direct Read Click-Type Torque Wrench (Model 810 SA 200). This mechanical click wrench scales up the capacity of the direct-read lineup, making it ideal for higher-torque automotive and industrial fastening jobs.
- Torque Capacity: 40 to 200 Nm (equivalent to roughly 30 to 150 ft-lbs).
- Scale Resolution: Displays clear increments of 0.50 Nm.
- Drive Size: Equipped with a built-in 1/2" male square drive.
- Premium Sealed Ratchet: Features a 72-tooth reversible ratchet mechanism requiring a tight 5° engagement arc. The head has a certified IP51 fluid and dust shield to keep grease in and grit out.

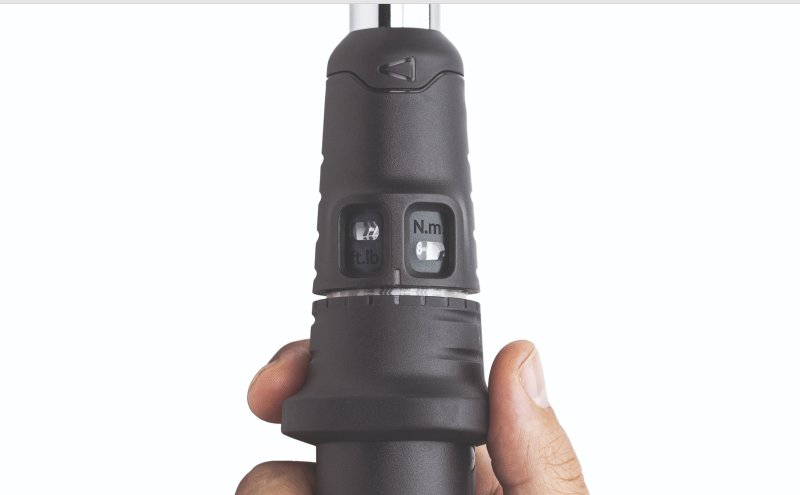

- Direct Read Mechanical Window: Eliminates traditional vernier barrel alignment guessing by showcasing a high-visibility mechanical window for instant setting adjustment.
- Calibration & Build: Confirms to ±4% accuracy in the clockwise direction, backed by an official factory test certificate. The internal spring compressor mechanism is safely protected by an alloy steel body tube.
- Chassis Footprint: Measures 475 mm in total length (18.7 inches) and weighs roughly 1.28 kg.
- Cross-Reference: Shares structural architecture with the modern Facom S.209-200 quick-read sequence.
