USAG Blind Nut Riveter (995C) - for steel nuts (to 6mm) and stainless nuts (to 5mm). Supplied with 3 chucks (M4, M5 and M6). Single or 2-handed use. Complete with accessories. Overall length = 13.2". Made in Italy. Identical to Facom Y.107 but at a more reasonable cost.

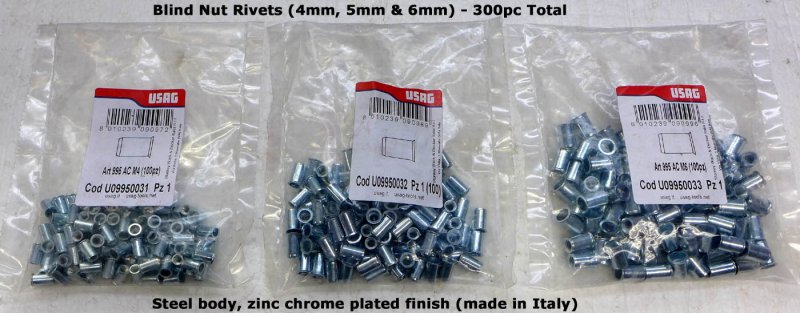

Rivets are available (in stock for shipment with the tool) in bags of 100pc....see listings below in this category. Limited supply.

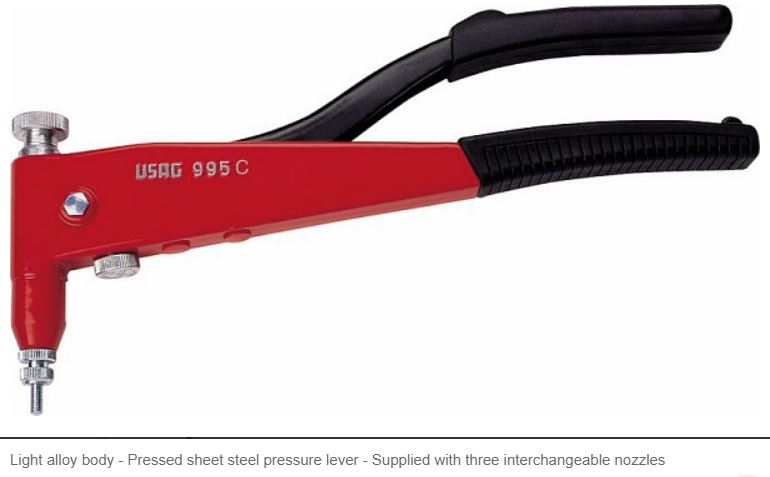

The USAG U09950000 (Model 995 C) is a professional-grade manual blind rivet nut (rivnut) tool. It is explicitly engineered for installing threaded rivet nuts into sheet metal, tubes, or blind enclosures where tapping threads directly into the material is impossible. Unlike the standard U09950001 pop riveter discussed previously, which pulls plain break-stem mandrels, the U09950000 operates with threaded tie rods to compress threaded sleeve fasteners. It is the exact Italian-brand counterpart to the FACOM Y.107 blind nut riveter.
- Model Designation: 995 C
- Part Reference Code: U09950000
- Total Tool Length: 335 mm (13.2 inches)
- Operation Profile: Configured for single or two-handed high-leverage compression.
- Origin Lineage: Made in Italy.
- Included Accessories: Supplied as a complete kit with 3 threaded mandrels/chucks (M4, M5, and M6) and the corresponding service wrenches to adjust stroke parameters.
Fastener Thread Capacity Grid - The internal mechanical drive is scaled to safely set medium-diameter fasteners without stripping the internal threads of the insert:
- Steel Nut Inserts: Up to M6 max capacity (fully supports M4, M5, and M6 sizes).
- Stainless Steel (Inox) Nut Inserts: Up to M5 max capacity.
