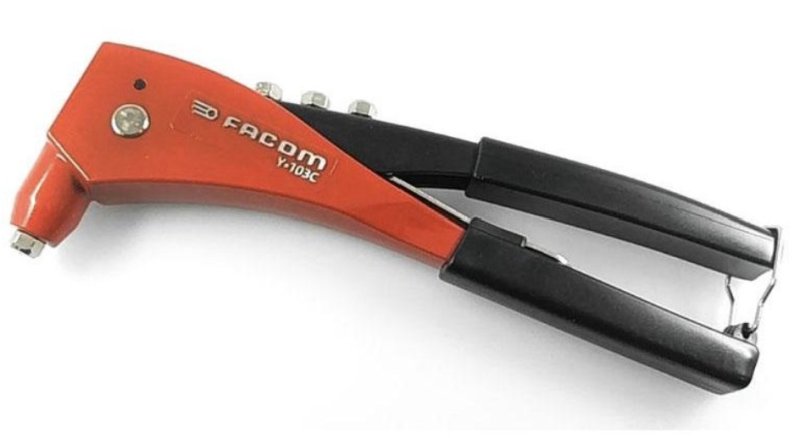

USAG/Facom Riveter (995A/Y.103C)....
- Capacity -Aluminium rivets (3.2mm, 4mm, 4.8mm diameter) & Steel rivets (3.2mm & 4 mm).
- Spring-loaded to open position.
- 3 nosepieces with keys for d 3.2 mm - 4 mm - 4.8 mm.

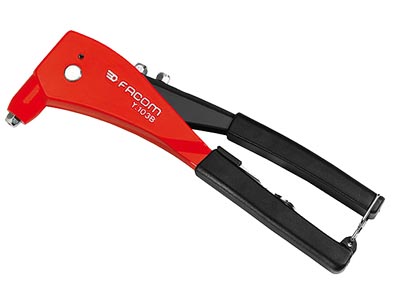

- Replaces the Y.103B.
- Overall length - 10"
- I prefer the USAG version of this tools as it is cheaper than Facom, more readily available and has a US warranty. The tools are identical except for the name on the tool.
The USAG U09950001 (Model 995 A) is a professional-grade manual hand riveter designed for setting blind pop rivets. It serves as a core mechanical fastening tool for automotive body panels, sheet metal fabrication, and industrial workshop maintenance. Featuring a lightweight but robust light alloy body combined with a pressure lever made of deep-drawn sheet steel, this tool is engineered to withstand high clamping forces while reducing operator hand fatigue during repetitive fastening workflows.
- Model Designation: 995 A
- Part Reference Code: U09950001

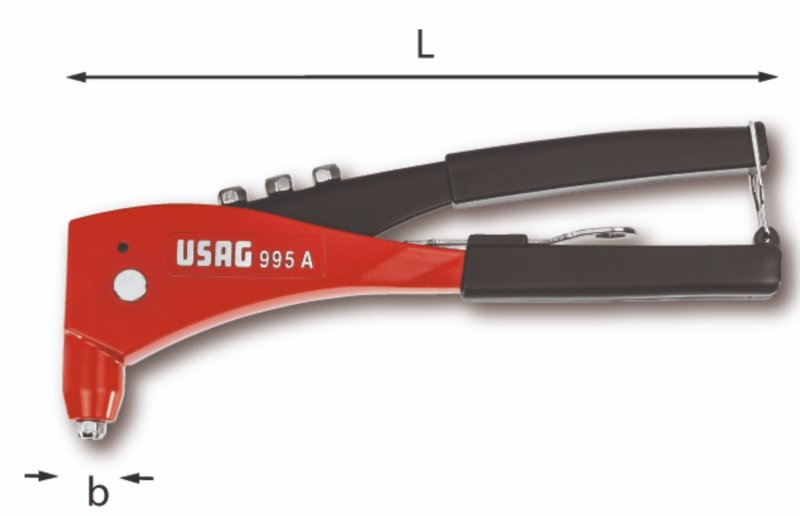

- Total Tool Length (L): 273 mm
- Nose Clearance Profile (b): 22 mm
- Product Weight: 490 grams
- Chassis Materials: High-strength light aluminum alloy main housing with a pressed structural steel actuation handle.
- Handle Return System: Integrated heavy-duty spring-action opening mechanism that automatically resets the handles apart after a rivet stem pops, increasing project speed and operation comfort.
- Global Product Identification (EAN): 8010239079892.

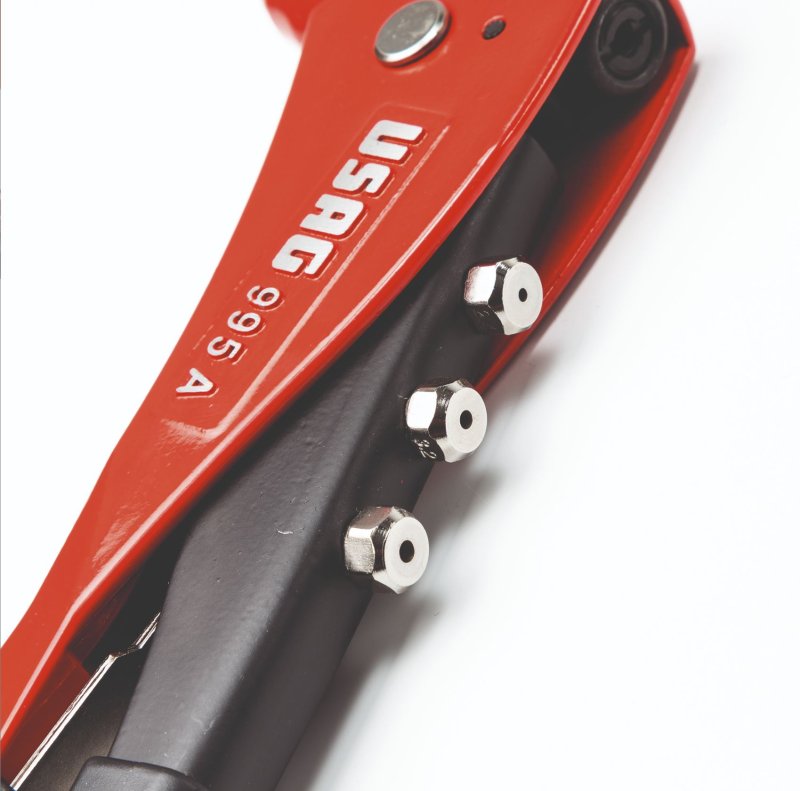

Rivet Capacity Grid - The 995 A comes factory-equipped with interchangeable nose pieces (nozzles) and a dedicated service key stored directly on the frame for rapid size swaps. Its precise structural capacities vary depending on the tensile strength of the rivet material being pulled: [
- Aluminum Fasteners: Ø 2.4 mm to 4.8 mm (services 2.4, 3.2, 4.0, and 4.8 mm diameters)
- Stainless Steel (Inox) Fasteners: Ø 2.4 mm to 4.0 mm
