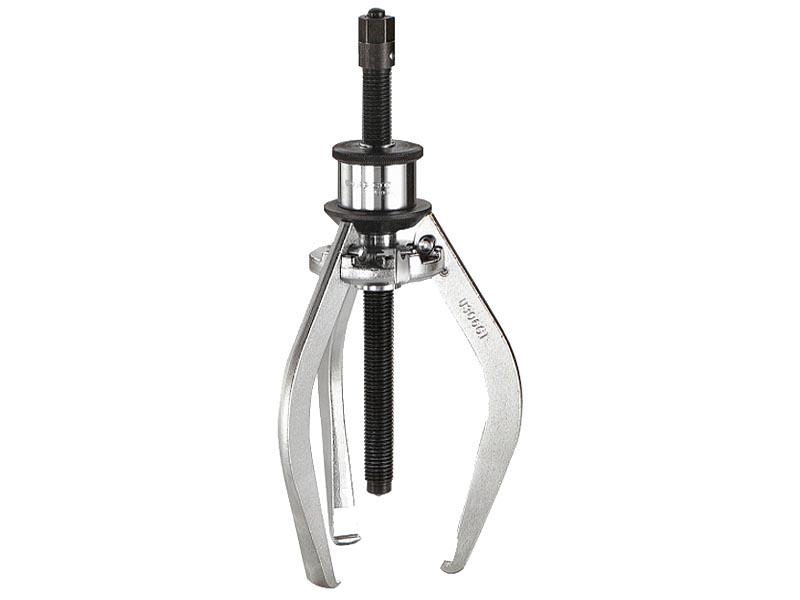

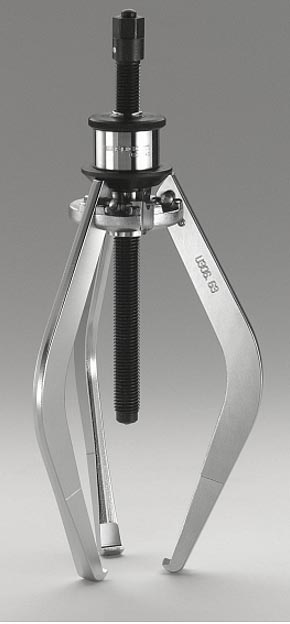

(U.306A140) -Outside Puller - 3/2 Leg System

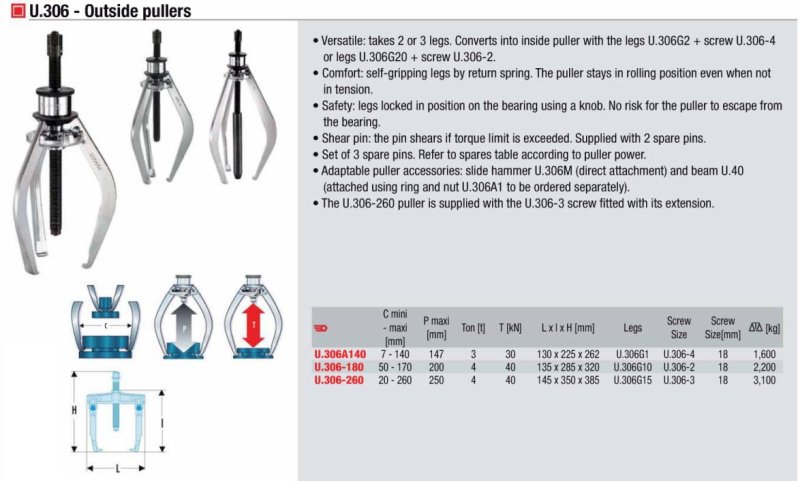

Facom Outside Puller (7-140mm) (U.306A140) - Versatile: takes 2 or 3 legs (3 legs are supplied with the tool). Converts into inside puller with the legs U.306G2 + screw U.306-4 or legs U.306G20 + screw U.306-2.

• Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.

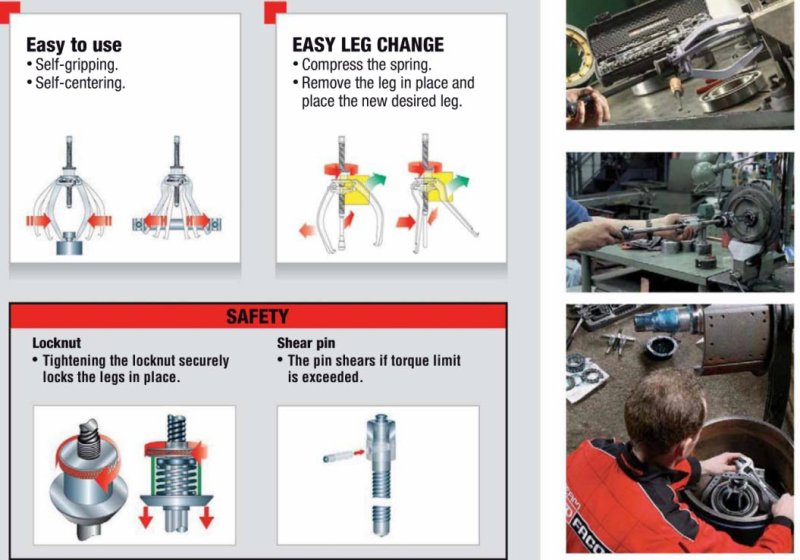

• Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
• Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.
• Set of 3 spare pins. Refer to spares table according to puller power.
• Adaptable puller accessories: slide hammer U.306M (direct attachment) and beam U.40 (attached using ring and nut U.306A1 to be ordered separately).
• The U.306-260 puller is supplied with the U.306-3 screw fitted with its extension.
