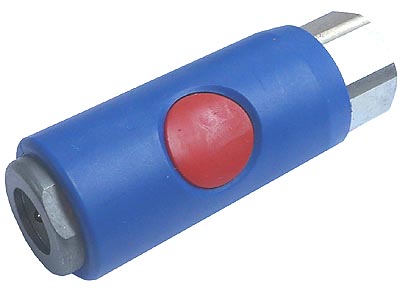

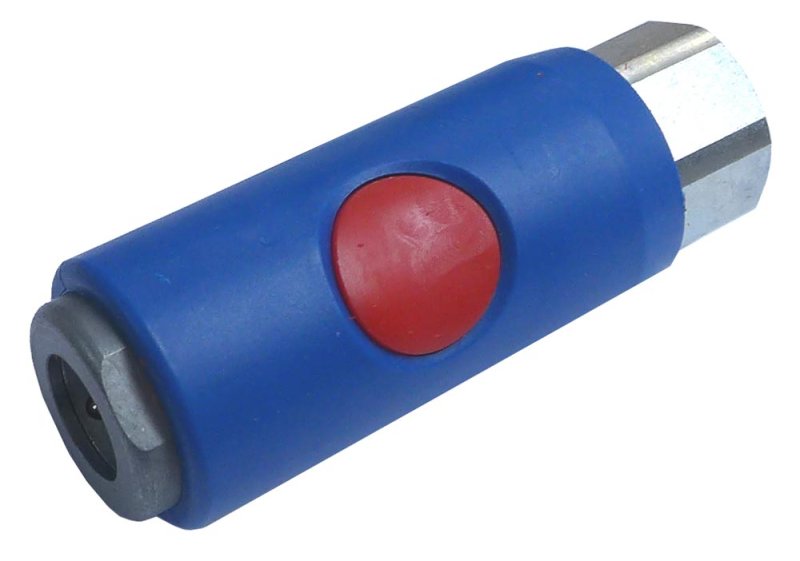

3/8" Flow Standard Coupler-3/8" NPT Female (Truflate)(box of 5)

Prevost "Standard" quick couplers release with a single push of the button on the side of the coupler, an easy one-handed operation. Technical features of this coupler include........

• 3/8" Flow
• Truflate Profile
• Nitrile seals for leak free connections
• Stainless steel spring
• Impact resistant plastic composite body
• 175psi working pressure
• Push to connect
• Push button disconnect

Note on Thread Size - Thread Size (NPT) does NOT refer to the physical dimension of the pipe or fitting. Please refer to the table below if you're unsure of which size to buy. For example, a 1/4" NPT pipe thread (common air tool fitting size) has an outer diameter of 0.540".

Outside Diameter (OD/inches) = Pipe Thread Size (NPT)

• 13/32 (.405") = 1/8" NPT
• 35/64 (.540") = 1/4" NPT
• 43/64 (.675") = 3/8" NPT
• 27/32 (.840") = 1/2" NPT
• 1-3/64 (1.050") = 3/4" NPT
