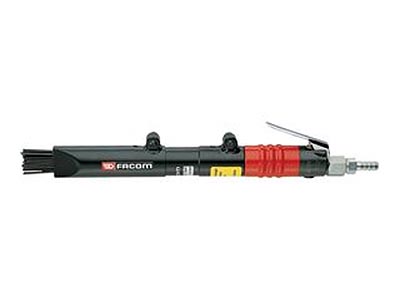

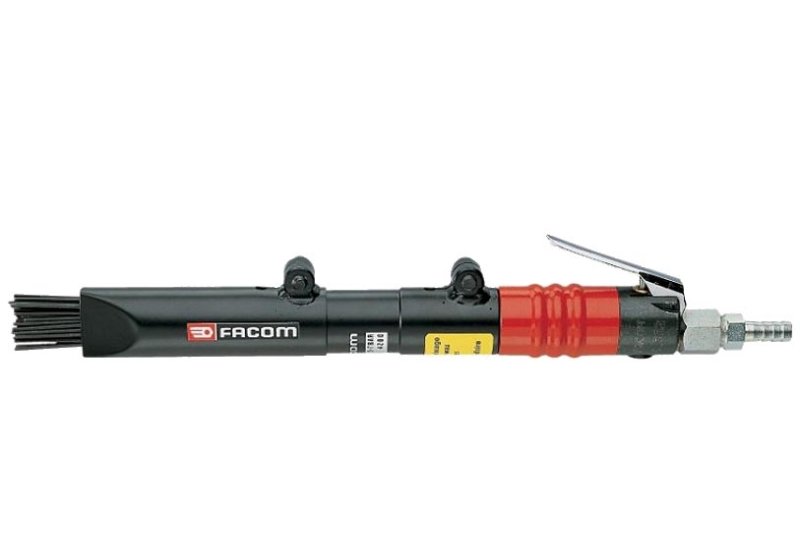

Facom Industrial Grade Precision Pneumatic Needle Scaler (V.352F) - replaces V.352 . Used for scaling and surface preparation. A great for removing weld slag, paint, rust, epoxy, etc. This is considered a "precision class" scaler with very low air consumption (0.9 cfm). Needles adjust to the contours of the surface and can clean an area to bare metal (even irregular surfaces) in a short amount of time. Delivered with 2mm diameter needles for fine cleaning with larger 3mm needles available for rough removal. I've looked at other Needle Scalers available and there were a lot of online comments about quality issues. The Facom unit is strong consideration. It's been around for years (as a V.352) and now refreshed with 2 available needle diameters. Rebuild parts are in stock and available through Ultimate Garage to keep this tool in service for years to come.
Features include.....
- Straight and compact design allows easy operation even in hard to reach areas.
- High performance motor delivers 4200 blows per minute for efficient working.
- Tool used for aggressive material removal for example to remove rust.
- Needle action great to work on irregular surfaces providing access to cracks or slots.
- 3 mm needles available as accessory for rougher removal when needed.
- Delivered with 27 needles diameter 2 mm with matching needle plate.
- Blows per minute 4200 cpm.
- Working pressure 6,2 bar.
- Average air consumption 24 l/min.
- Average air consumption 0,9 cfm. **
- Air inlet 1/4".
- Minimum hose diameter 10 mm - 3/8".
- Vibration 11,7 m/s²/a.
- Vibration 1,66 m/s²/K.
- Sound pressure 94 dB(A).
- Sound power 105 dB(A).

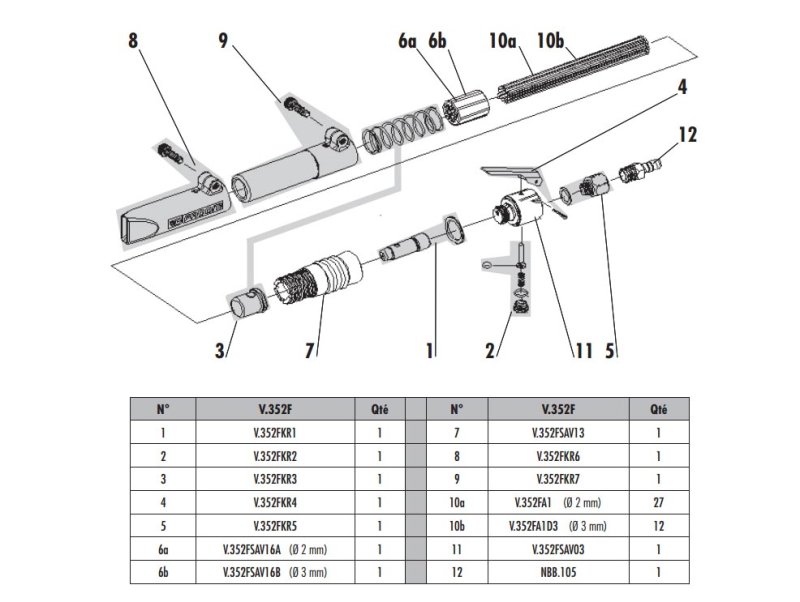

- Spares (if changing needles, don't forget to order the appropriate needle plate):
- Set of 27 needles diameter 2 mm: V.352FA1.
- Needle plate for 2 mm needles: V.352FSAV16A.
- Set of 12 needles diameter 3 mm: V.352FA1D3.
- Needle plate for 3 mm needles: V.352FSAV16B.
** Ultra-Light / Precision Duty Class (0.9 to 3 CFM): Specialized or compact needle scalers (such as the ultra-efficient FACOM V.352F which draws 0.9 CFM or Chicago Pneumatic mini units at 2.4 CFM) are optimized to run on smaller setups. They use smaller or fewer needles (often 2mm) for intricate scaling.
(AI) - The Facom V.352F is a professional-grade pneumatic needle scaler (also called a needle chopper or rust remover). Its slim, inline design makes it ideal for aggressive material removal—such as stripping heavy rust, paint, scale, and welding slag—especially from irregular surfaces, tight cracks, and crevices.
- Impact Rate: 4,200 blows/strokes per minute (cpm) for fast, efficient clearing.
- Air Consumption: Exceptionally low at 24 liters/minute (0.9 CFM).
- Operating Pressure: Standard 6.2 bar (90 PSI).
- Connections: 1/4" air inlet thread • Requires a minimum hose inner diameter of 10 mm (3/8").
- Dimensions & Weight: 360 mm length • 36 mm thickness • Weight: 1.67 kg (approx. 3.7 lbs).
- Standard Tooling: Shipped from the factory with a 27-piece set of 2 mm diameter needles and a matching guide plate.

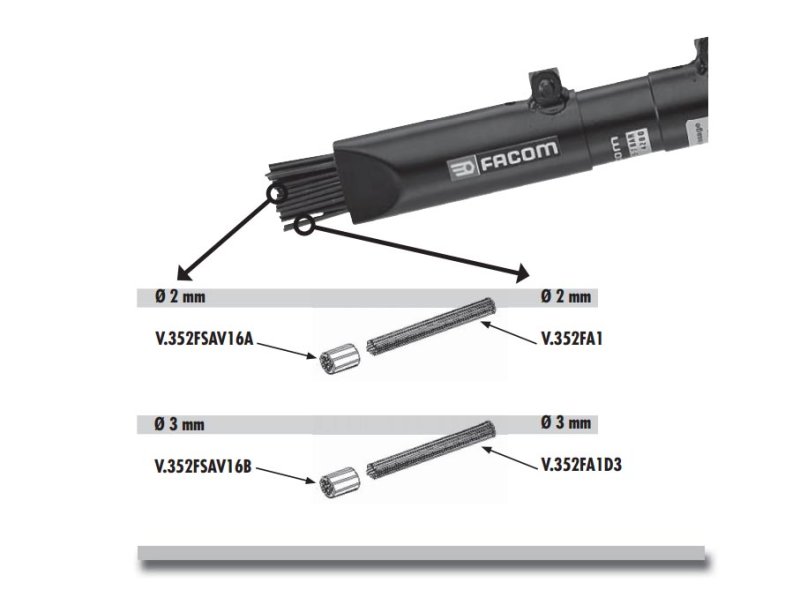

If you need to swap out worn needles or scale rougher surfaces, Facom breaks down the replacement components under distinct part numbers:
- 2 mm Standard Setup: Replacement 2 mm needle set (V.352FA1) • Matching 2 mm needle plate (V.352FSAV16A).
- 3 mm Coarse Setup: Coarser 12-piece 3 mm needle set (V.352FA1D3) • Matching 3 mm needle plate (V.352FSAV16B).
(Note: If you change needle sizes, always switch the needle guide plate to match the diameter).
