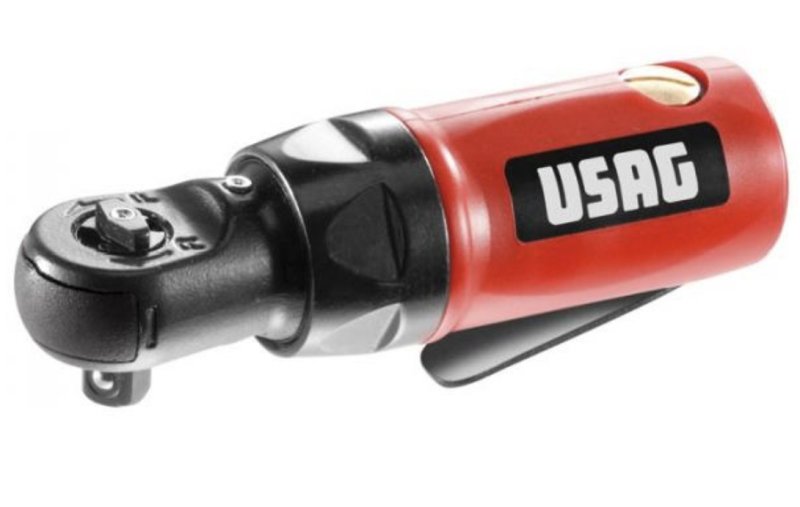

USAG ultra-compact 3/8" drive air ratchet - only 5.35" (135mm) in length - great for working in tight spots (the VR.J254 is 205mm in length)
- Durable ratchet head mechanism with closed head design: prevents dust and particles to damage the head
- Easily accessible forward reverse switch, even usable with greasy hands
- Accessible nipple for convenient greasing of the head and gears
- Insulating rubber sleeve covering a lightweight aluminium housing
- Speed easily regulated with a screwdriver
- Rear exhaust drives the air away from the workplace
- Feather teasing trigger for optimal speed regulation
- Socket ball retainer for safety
- 29 mm slim profile head

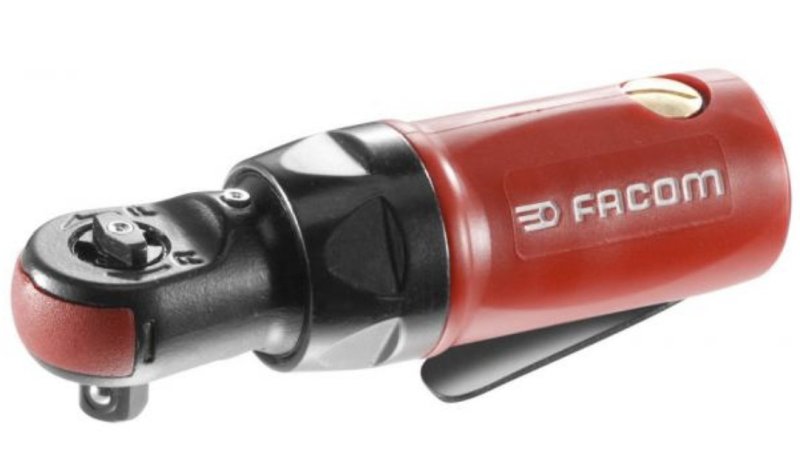

- Identical to Facom VR.J154
- Maximum torque 54 N.m. (40 ft lbs)
• Free speed 300 tr/min.
• Square drive 3/8".
• Working pressure 6,2 bar.
• Average air consumption 110 l/min.
• Air inlet 1/4".
• Minimum hose diameter 10 mm - 3/8".
• Vibration 3,90 m/s²/a.
• Vibration 0,89 m/s²/K.
• Sound pressure 92 dB(A).
• Sound power 103 dB(A).
The USAG U09130011 (Model 913 PB2) is a premium, professional-grade 3/8" compact pneumatic impact air ratchet. It is manufactured by USAG, a highly regarded Italian hand and power tool brand that operates under the Stanley Black & Decker umbrella (alongside sister brands like Facom and Proto). Designed primarily for automotive and industrial professionals, this tool features a flat, low-profile head engineered to reach fasteners in tight, confined engine bays or machinery spaces.
Technical Specifications
- Drive Size: 3/8" square drive
- Max Torque: 54 Nm (approx. 40 ft-lbs)
- Free Speed: 300 RPM
- Weight: Exceptionally lightweight at just 0.5 kg (1.1 lbs)
- Air Consumption: 110 liters/minute
- Operating Pressure: 6.2 bar (90 PSI)
- Air Inlet: 1/4" NPT thread
- Materials: High-resistance composite outer body paired with a rugged steel front housing to handle heavy-duty workshop environments.
- Exhaust: Rear air exhaust to direct air away from the working surface.
