Facom Metric Angled Box Wrench Set-10mm (92A.10) - great for reaching nuts on long threaded rods.
- Passage hole allowing to use shanks: 160A.
- Shank to use: 160A.1 for the dimensions 4 to 23 mm; 160A.2 for the dimensions 24 to 32 mm.
- Metric sizes: 4 to 32 mm.
- Satin chrome finish.

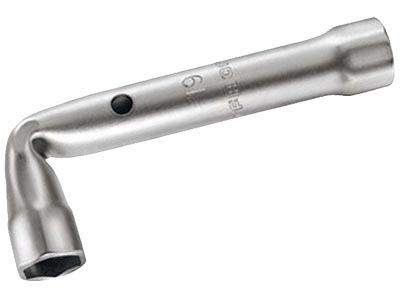

The FACOM 92A.10 is a professional-grade 10 mm Metric Angled Hollow Box Wrench (often called an L-shaped tubular or socket spanner). It is engineered primarily for mechanical, industrial, and automotive applications where nuts need to be reached on long, deeply extended threaded rods or studs. It's a premium satin chrome-plated L-shaped socket wrench featuring a hollow core design.

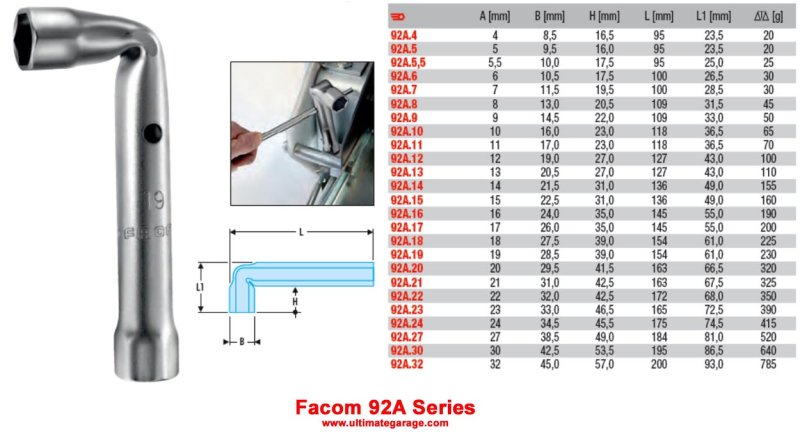

• Socket Profile: 6-point x 6-point hexagonal openings on both ends
• Fastener Size: 10 mm metric hex
• Overall Length (L): 118 mm
• Short Socket Length (L1): 36.5 mm
• Head Diameter (B): 16.0 mm
• Short Head Height (H): 23.0 mm
• Net Weight: 65 grams
• Standards Compliance: Conforms fully to technical standards NF ISO 2236, ISO 2236, and DIN ISO 691.
Core Structural Design
- 90° Angled Hollow Pipe: The short side of the wrench is bent at a 90° angle. The hollow design allows an extra-long threaded rod or bolt shank to pass completely through the head, making it possible to tighten down a nut even when it sits deep down a long bolt thread.
- Passage Hole for Tommy Bars: The angle bend features an integrated passage hole designed to accept a wring bar / tommy bar (specifically the FACOM 160A.1 shank size). Slipping a tommy bar through this hole creates a high-leverage T-handle assembly for breaking stubborn or frozen fasteners loose.
