Gedore 45pc Torsional (Impact) Bit Set with Case - comparable to the 40pc Facom EN.1J40PB but at a much better price. (27e)
Contents:
- 1/4" Phillips Bits- PH1 (x2), PH2 (x4), PH3 (x2)
- 1/4" Pozidriv Bits- PZ1 (x2), PZ2 (x4), PZ3 (x2)
- 1/4" Torx Bits- T10 (x2), T15 (x2), T20 (x4), T25 (x4), T30 (x2), T40 (x2)
- 1/4" Hex Bits- 3mm (x2), 4mm (x2), 5mm (x2), 6mm (x1), 8mm (x1)
- 8mm Magnetic Socket (1/4" hex drive, L=67mm)
- 10mm Magnetic Socket (1/4" hex drive, L=67mm)
- 13mm Magnetic Socket (1/4" hex drive, L=67mm)
- 1/4" Drive Socket adapter (L=50mm)
- 1/4" Bit Holder/Extension
The Gedore 666-045 (factory code 3459519) is a premium 45-piece industrial 1/4-inch hex drive torsion bit and socket set. It is engineered specifically for heavy-duty assembly and repair applications using high-power cordless drill drivers and impact drivers. Each driver bit is equipped with an integrated torsion zone—a specialized spring-loaded neck buffer that flexes under peak load. This design dampens abrupt torque spikes, protecting fastener heads from stripping and significantly increasing the overall service life of the tool steel. All driver bits feature uniform color-coding grouped by profile shape to allow for rapid identification in busy shop environments.

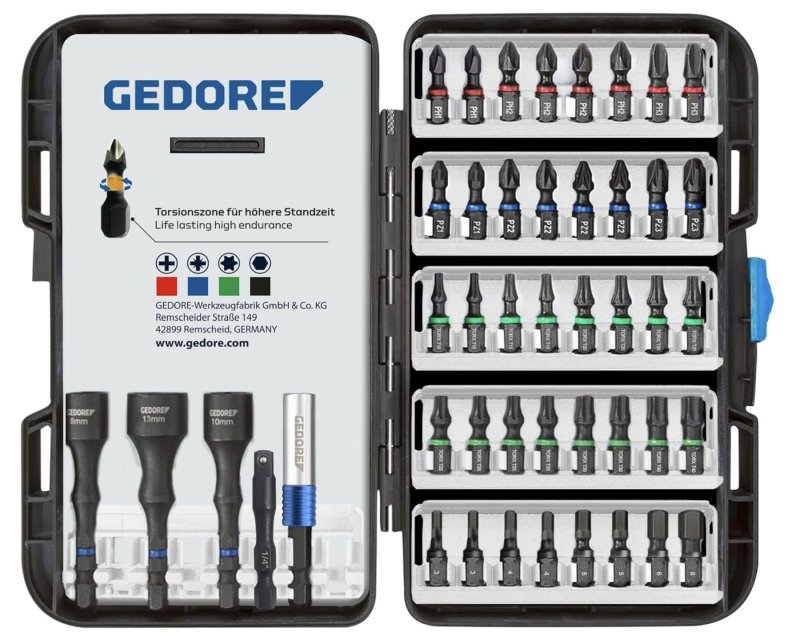

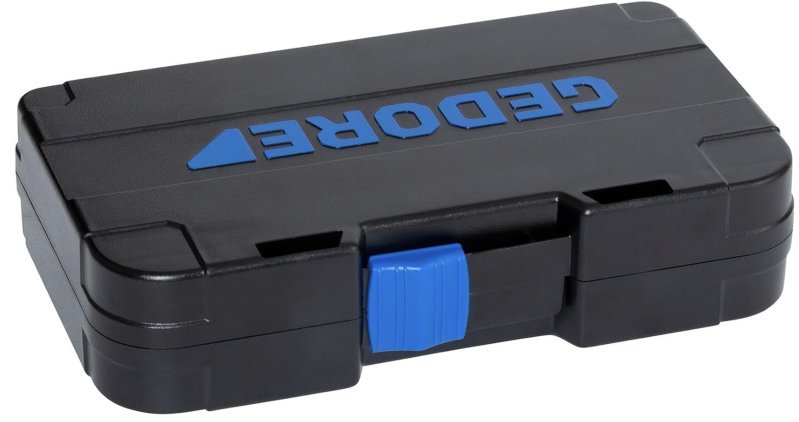

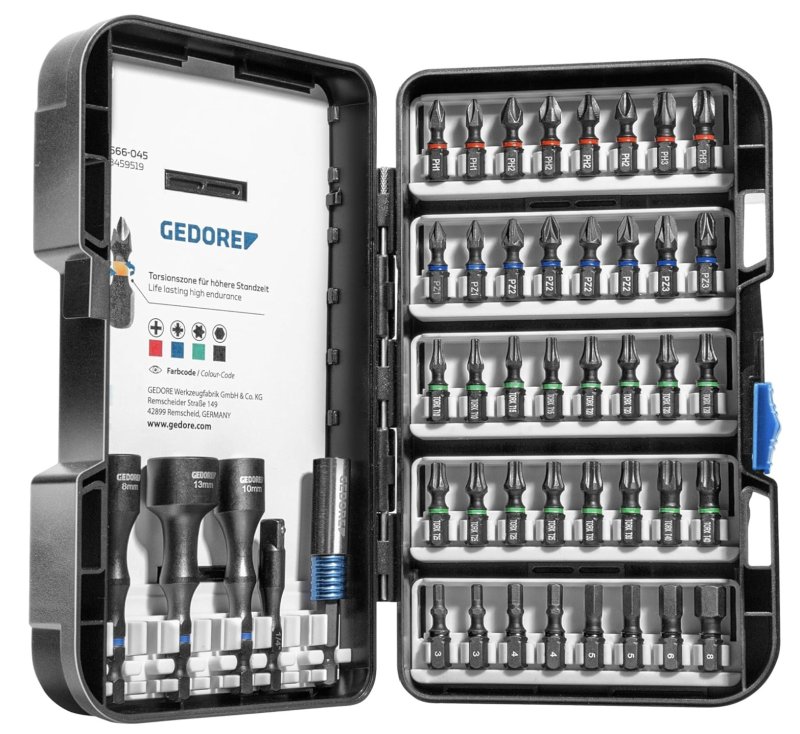

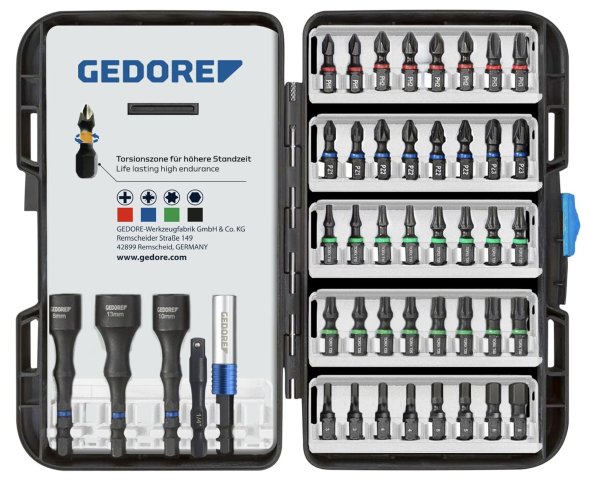

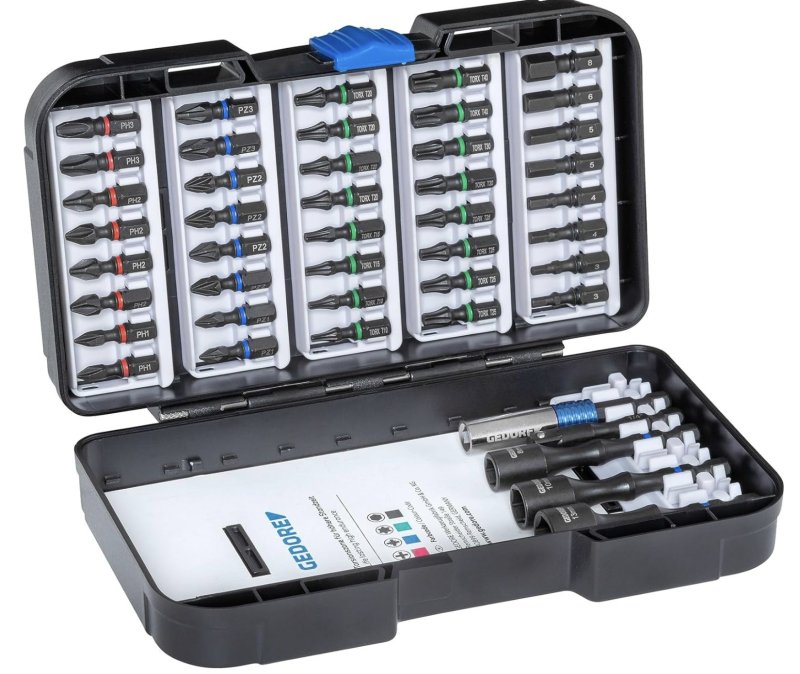

Complete Kit Breakdown - The set comes enclosed in a robust, compact, lockable hard plastic storage case layout containing the following 45 pieces:
- 25 mm Screwdriver Bits (36 Pieces):
- Phillips: 2 x PH1 | 4 x PH2 | 2 x PH3
- Pozidriv: 2 x PZ1 | 4 x PZ2 | 2 x PZ3
- TORX: 2 x T10 | 2 x T15 | 3 x T20 | 4 x T25 | 2 x T30 | 2 x T40
- Internal Hex (Allen): 2 x 3 mm | 2 x 4 mm | 2 x 5 mm | 1 x 6 mm | 1 x 8 mm
- 67 mm Nut Setter Sockets (3 Pieces):
- Equipped with strong internal magnets and an external 1/4" hex drive shank: 8 mm, 10 mm, and 13 mm.
- Adapters & Extensions (2 Pieces):
- 1 x 50 mm Quick-Release Bit Adapter: Features an automatic click-locking safety mechanism to keep short bits locked inside power tool chucks.
- 1 x 50 mm Socket Drive Adapter: Adapts a 1/4" external hexagon shank to a 1/4" external square drive for running standard square-drive hand sockets on an impact driver.
Physical & Operational Specs - Exact tool parameters provided by Gedore's Technical Specifications include:
- Drive Interface: 1/4" Hexagon (DIN 3126 - C 6.3 style input)
- Maximum Torque Capacity: Rated up to 30 N·m of force
- Case Exterior Dimensions: 190 mm x 120 mm x 45 mm
- Total Set Weight: 0.57 kg (approx. 1.25 lbs)
|
