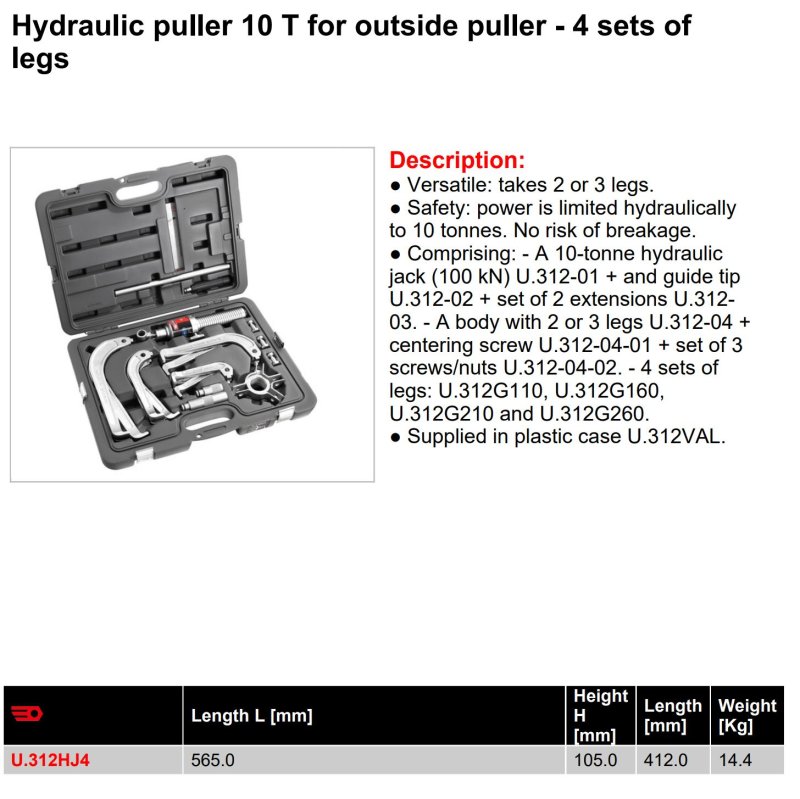

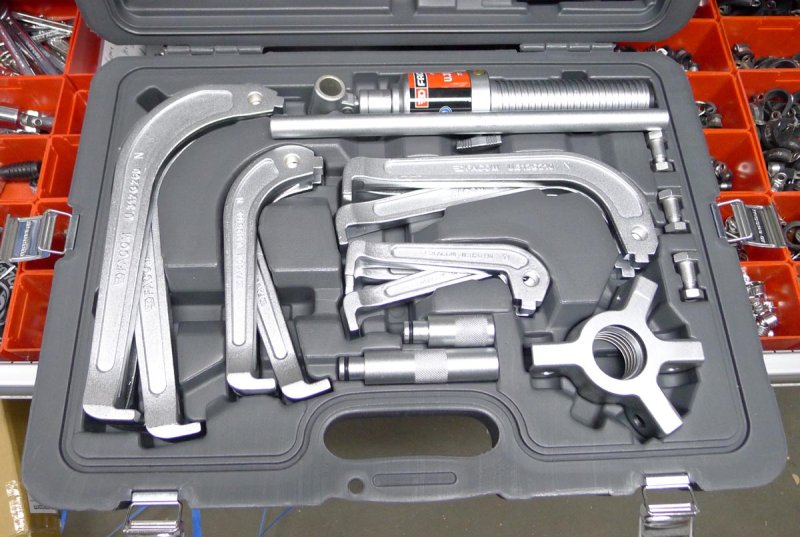

Facom 10 Ton Hydraulic Puller Set with 8 Configurations (U.312HJ4)........single pump operation for ease of use. Heavy duty carry case (with 4 case latches...lockable). 10 ton safety overload valve for added safety. I've included a few extra photos so you can see how everything fits in the case. In the future, I'll be stocking the U.312HJ3 and offering the smallest leg set (3pc of U.312G110) separately.

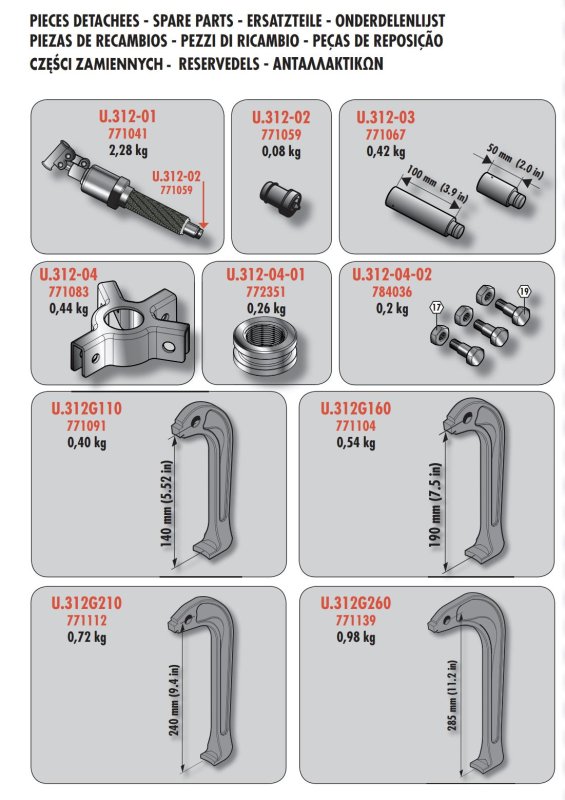

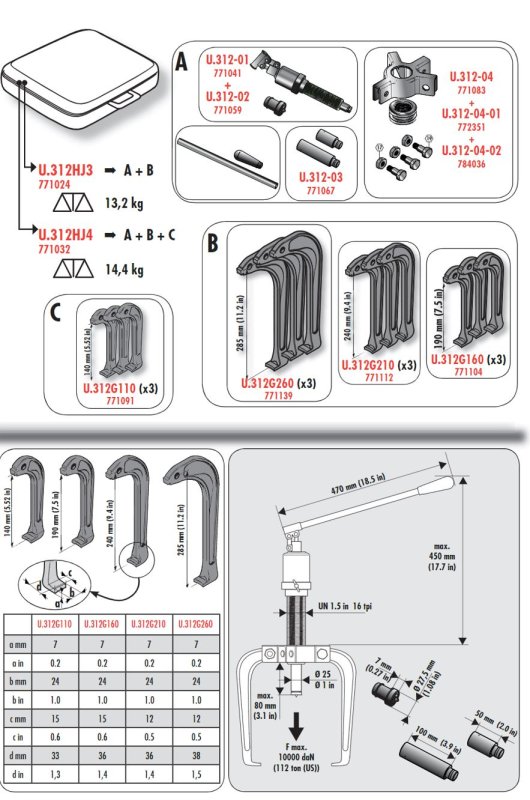

- 10 tonne (100 kN) hydraulic jack U.312-01 + guide U.312-02 + set of 2 extensions U.312-03
- 2 or 3-leg puller body U.312-04 + centering screw U.312-04-01 + set of 3 screws/nuts U.312-04-02
- 3 outside-gripping legs U.312G110 : Spread : 45 to 85 mm; Max. reach : 110 mm (these are excluded from the U.312HJ3 Puller Set)
- 3 outside-gripping legs U.312G160 : Spread : 80 to 170 mm; Max. reach : 160 mm
- 3 outside-gripping legs U.312G210, Spread : 90 to 210 mm; Max. reach : 210 mm
- 3 outside-gripping legs U.312G260, Spread : 110 to 270 mm; Max. reach : 260 mm
- Supplied in a plastic case (U.312VAL)
- Measures - 565 x 412 x 105 mm
- Weight: 14.4 kg
Key Specifications
- Pulling Capacity: 10 Tonnes (100 kN).
- Spread Range: Handles outside gripping diameters from 45 mm up to 270 mm.
- Configurations: Offers up to 8 distinct mechanical configurations.
- Total Weight: Around 14.4 kg to 16.1 kg packaged.

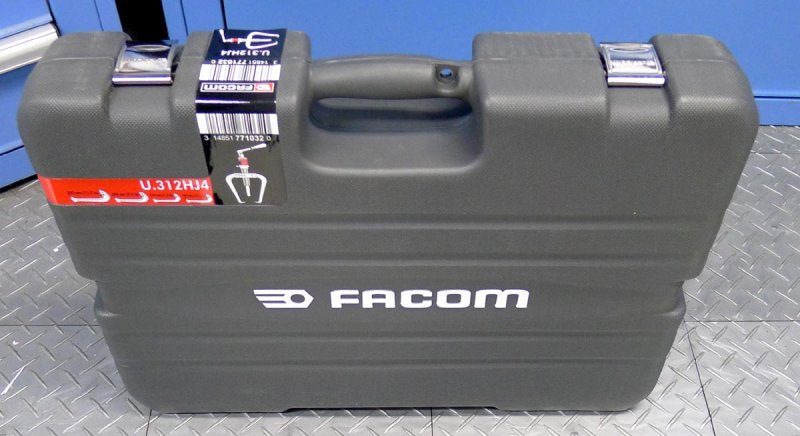

- Storage: Dispatched in a rugged, heavy-duty molded plastic carry case (U.312VAL).

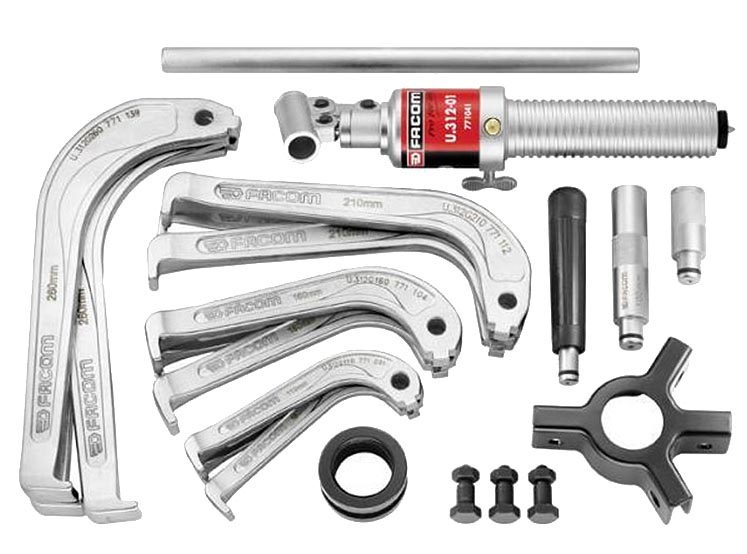

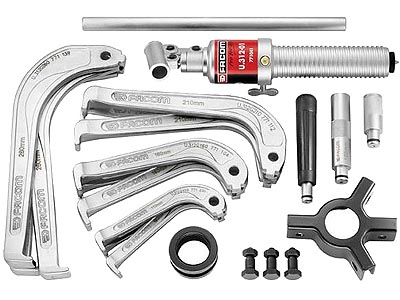

The full component kit includes the following pieces:
- Hydraulic Core: A 10-tonne hydraulic jack (U.312-01) outfitted with a guide tip (U.312-02) and a set of 2 extensions (U.312-03).
- Puller Structure: A convertible 2 or 3-leg puller body (U.312-04) supplied with a centering screw and full set of assembly hardware.
- 4 Modular Arm Sets:
- U.312G110: Max reach of 110 mm (Spread: 45 to 85 mm).
- U.312G160: Max reach of 160 mm (Spread: 80 to 170 mm).
- U.312G210: Max reach of 210 mm (Spread: 90 to 210 mm).
- U.312G260: Max reach of 260 mm (Spread: 110 to 270 mm).
