USAG 1/2" Drive Auto Reset Torque Wrench with Fixed Ratchet.....range 60-340nm (45-255 ft lbs). 72 tooth (5 degree increments). Made by USAG in Italy and sold with both USAG and Facom branding (this one is USAG with the US warranty). Replaces the previous S.208-340. Dual scale readout...both ft lbs and nm. Touch and sound signals when preset torque is reached. Accuracy to +/-4%. Supplied in a protective storage tube. Made in Italy. Includes owners manual and calibration report.

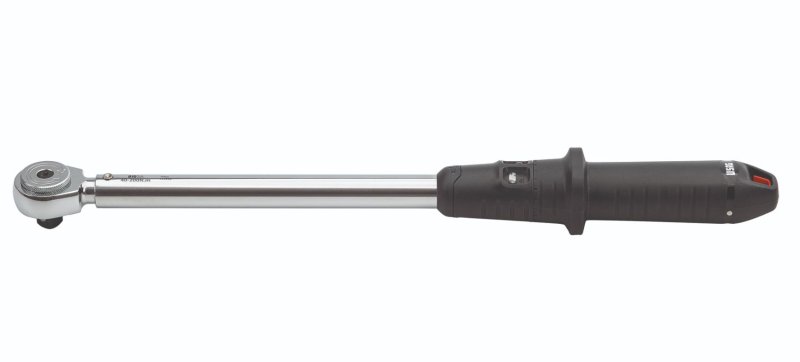

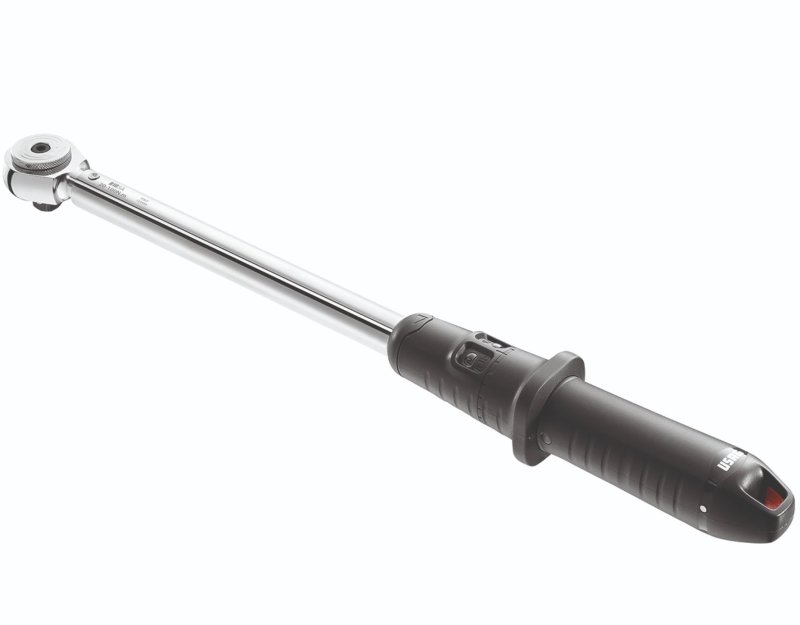

USAG 1/2" Drive Direct Read Click-Type Torque Wrench (Model 810 SA 340). This heavy-duty mechanical torque wrench represents the highest capacity configuration in the 810 SA direct-read line.
- Torque Capacity: 60 to 340 Nm (equivalent to roughly 45 to 255 ft-lbs).
- Scale Resolution: Displays clean, precise adjustments in 1.00 Nm increments.
- Drive Size: Features a 1/2" male square drive matched with a built-in fixed reversible ratchet head.
- Sealed Ratchet Mechanism: Outfitted with a 72-tooth ratchet (5° engagement arc) featuring a certified IP51 fluid and dust shield to safeguard the internal components under harsh shop environments.

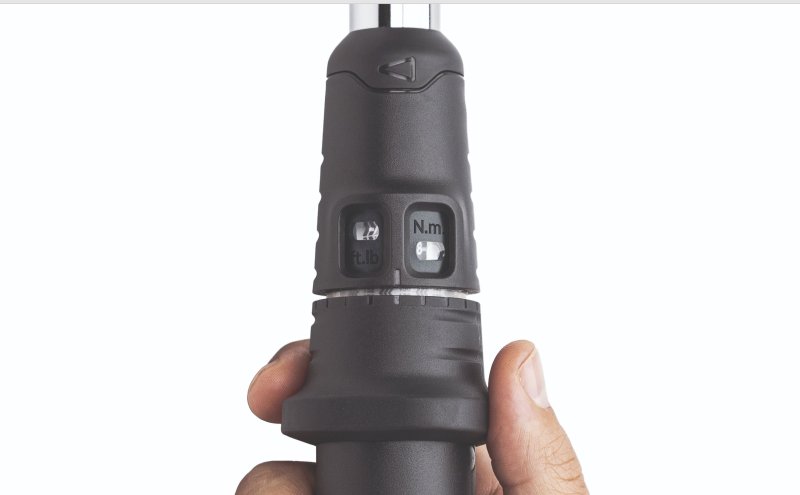

- Direct Read Window: Utilizes a clear mechanical window display directly integrated into the body. This replaces traditional barrel-etched vernier markings to allow faster, parallax-free settings.
- Calibration & Accuracy: Factory-calibrated to a standard ±4% accuracy in the clockwise orientation, meeting ISO 6789 compliance. Every unit ships with an individual certificate of calibration.
- Chassis Footprint: Extended to 630 mm in total length (approximately 24.8 inches) to guarantee sufficient leverage when applying high-torque inputs.

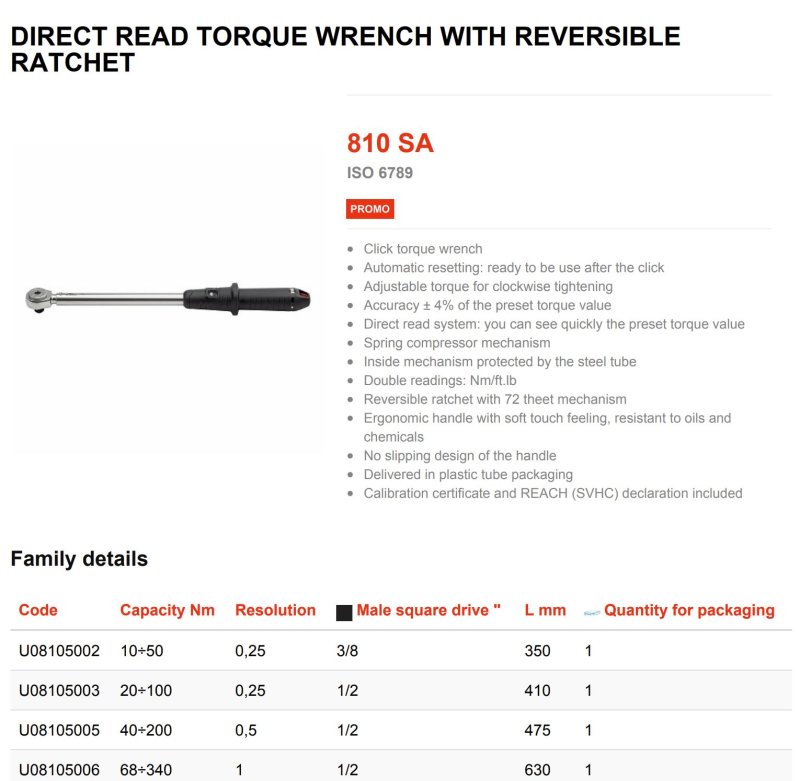

- Cross-Reference Twin: Shares a shared physical platform, architecture, and dual-scale readout layout with the Facom S.209-340 torque wrench model.
